Categories	CSDB Series
Brand	DADISICK
Model	CSDB series

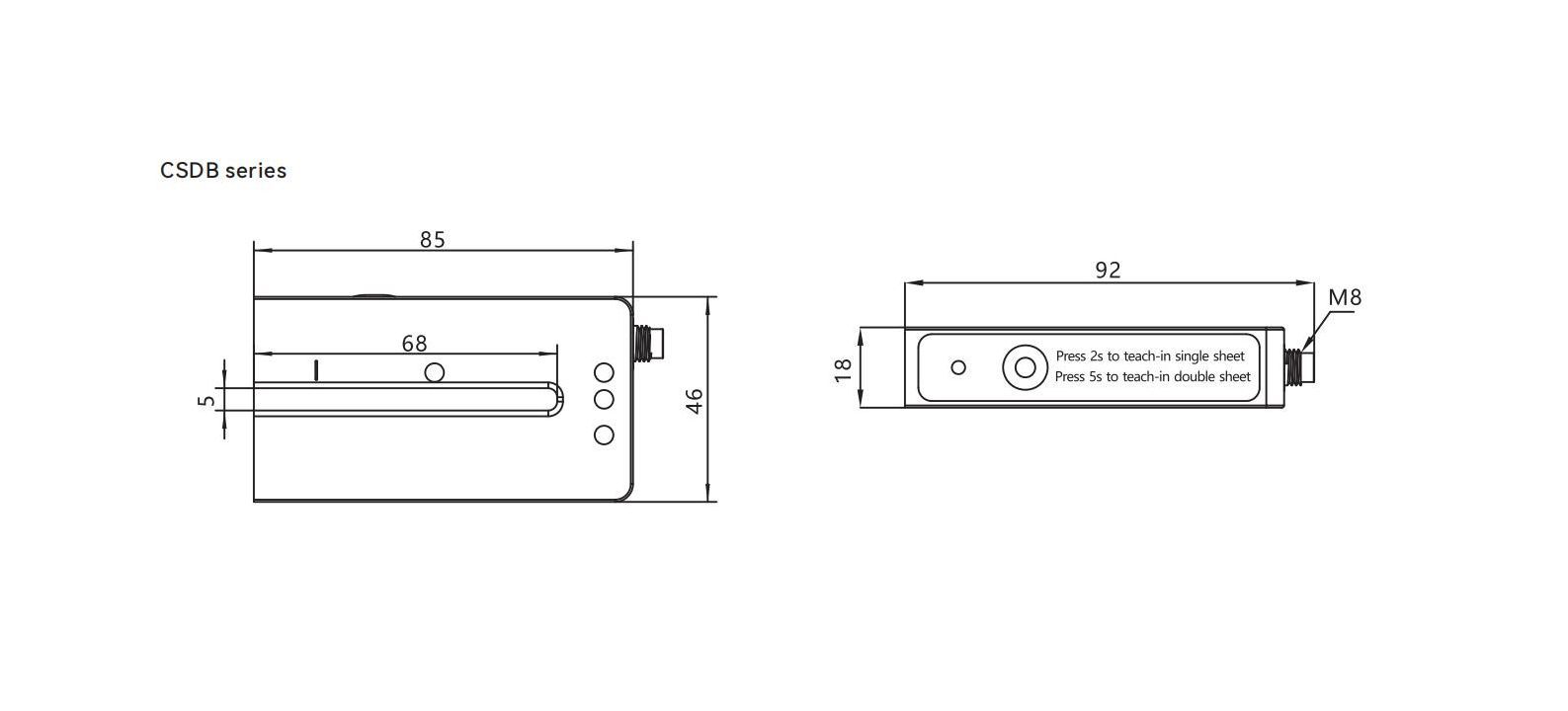

Size:	Cuboid 85 x 18 x 46 mm
Groove depth:	68 mm
Slot width:	5 mm
Material:	Metal, Aluminum
Connection type:	4-pin M8 connector
Ambient temperature:	-25°C~+70°C (248~343K)

Danh mục: Cảm biến siêu âm (Ultrasonic sensors) Thẻ: CSDB Series

Mô tả

Model	CSDB
Groove depth	68 mm
Slot width	5 mm
Minimum detectable object	Gap between labels / label size: 5 mm
Switching frequency	1.2 kHZ
Input type	With synchronization and learning functions

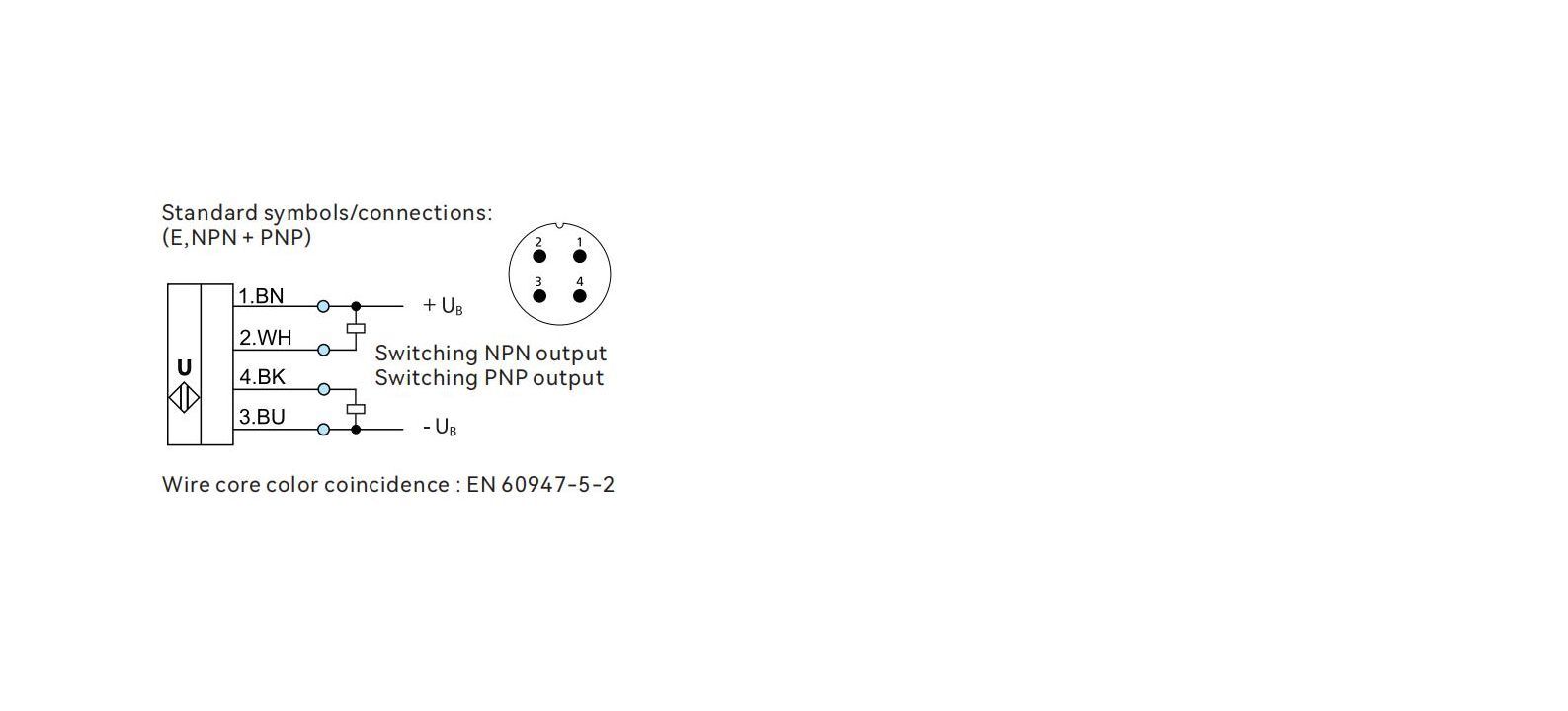

Switching output	PNP + NPN
Weight	105 g

Electrical data
Working voltage	10-30 V DC, reverse polarity protection
Output current	100 mA
Response time	250 μs
LED yellow light	No target (air)
LED red light	Double sheet detected
LED green light	Leaflet detected
Structural style	Channel shape
material quality	Metal, Aluminum
Line type	4-pin M8 connector
Protection level	IP 67
