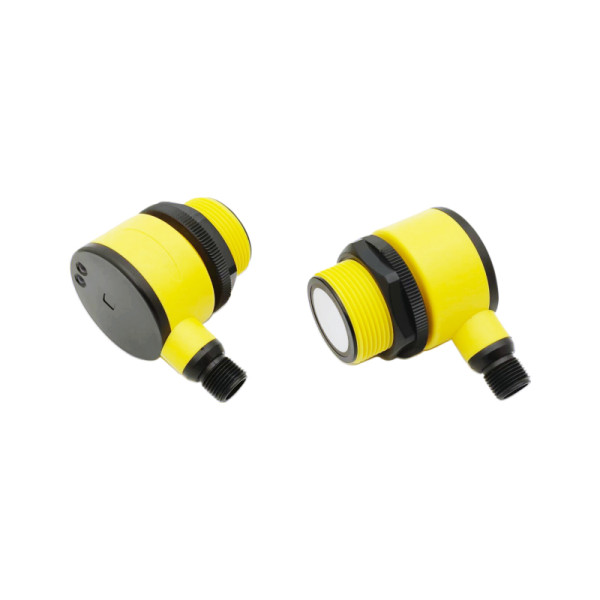

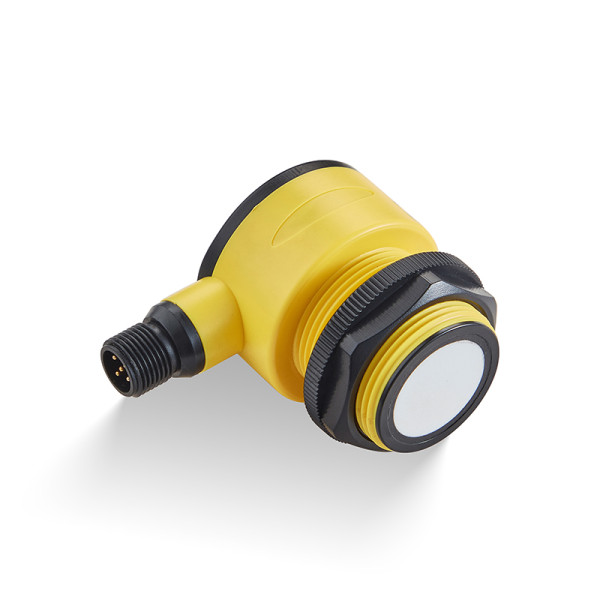

CSR30-3000-UE5-V15 | Ultrasonic Water Level Sensor | DADISICK
Liên hệ
| Categories | CSR30 Series |
|---|---|
| Brand | DADISICK |
| Model | CSR30 series | CSR30-3000-UE5-V15 |

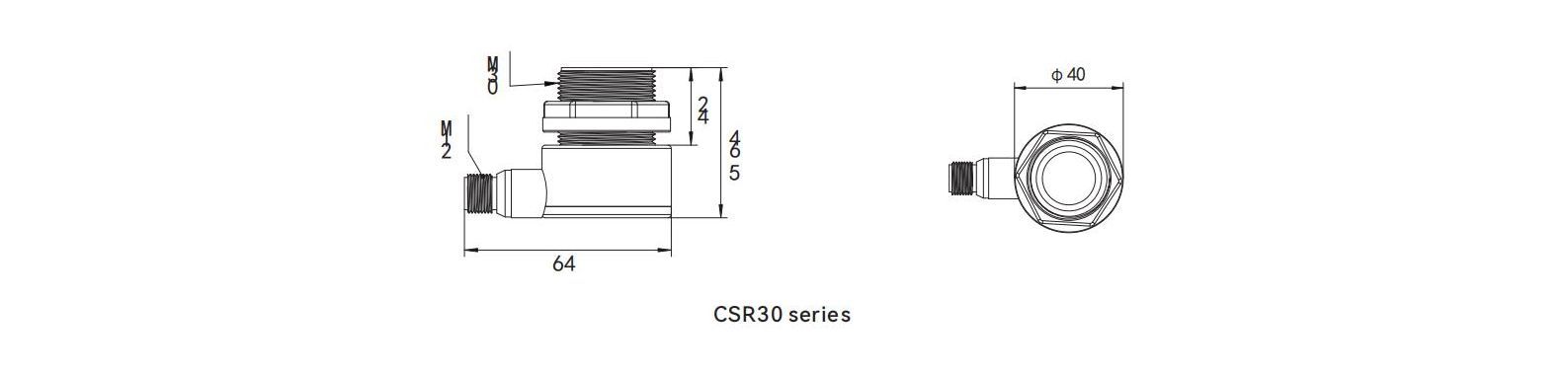

| Size: | Cylindrical M30 mm |
| Detection range: | 150-3000 mm |
| Material: | Plastic accessories, filled with epoxy resin |
| Connection type: | 5-pin M12 connector |
| Output Method: | Analog voltage 0-10V+PNP |
| Security level: | IP67 |
| Ambient temperature: | -25°C~+70°C (248~343K) |
|
Ultrasonic Water Level Sensor CSR30 series switch output E2/E3/E4/E5, E6/E7/E8/E9
|
||
|
Model
|
CSR30-2000-E2-V15
|
CSR30-3000-E2-V15
|
|
CSR30-2000-E3-V15
|
CSR30-3000-E3-V15
|
|
|
CSR30-2000-E4-V15
|
CSR30-3000-E4-V15
|
|
|
CSR30-2000-E5-V15
|
CSR30-3000-E5-V15
|
|
|
CSR30-2000-E6-V15
|
CSR30-3000-E6-V15
|
|
|
CSR30-2000-E7-V15
|
CSR30-3000-E7-V15
|
|
|
CSR30-2000-E8-V15
|
CSR30-3000-E8-V15
|
|
|
CSR30-2000-E9-V15
|
CSR30-3000-E9-V15
|
|
|
Detection range
|
100-2000 mm
|
150-3000 mm
|
|
Blind zone
|
0-100 mm
|
0-150 mm
|
|
Resolution
|
0.17 mm
|
0.17 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
|
|
Absolute accuracy
|
±1% (built-in temperature drift compensation)
|
|
|
Response time
|
82 ms
|
102 ms
|
|
Switching hysteresis
|
±2 mm
|
±3 mm
|
|
Switching frequency
|
10 Hz
|
9 Hz
|
|
Input type
|
With synchronization and learning function
|
|
|
Output type: E2/E4
|
1 NPN switch output, NO/NC
|
|
|
Output type: E3/E5
|
1 PNP switch output, NO/NC
|
|
|
Output type: E6/E8
|
2 PNP switch output, NO/NC
|
|
|
Output type: E7/E9
|
2 NPN switch output, NO/NC
|
|
|
Weight
|
62 g
|
62 g
|
|
CSR30 series analog output/digital output I/U/IU/IE4/UE4, RS485
|
||
|
Model
|
CSR30-2000-I-V15
|
CSR30-3000-I-V15
|
|
CSR30-2000-U-V15
|
CSR30-3000-U-V15
|
|
|
CSR30-2000-IU-V15
|
CSR30-3000-IU-V15
|
|
|
CSR30-2000-IE4-V15
|
CSR30-3000-IE4-V15
|
|
|
CSR30-2000-IE5-V15
|
CSR30-3000-IE5-V15
|
|
|
CSR30-2000-UE4-V15
|
CSR30-3000-UE4-V15
|
|
|
CSR30-2000-UE5-V15
|
CSR30-3000-UE5-V15
|
|
|
CSR30-2000-R4-V15
|
CSR30-3000-R4-V15
|
|
|
Detection range
|
100-2000 mm
|
150-3000 mm
|
|
Blind zone
|
0-100 mm
|
0-150 mm
|
|
Resolution
|
0.17 mm
|
0.17 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
|
|
Absolute accuracy
|
±1% (built-in temperature drift compensation)
|
|
|
Response time
|
82 ms
|
102 ms
|
|
Switching hysteresis
|
±2 mm
|
±3 mm
|
|
Switching frequency
|
10 Hz
|
9 Hz
|
|
Input type
|
With synchronization and learning function
|
|
|
Output type: I
|
1 analog current output 4-20 mA, rise/fall
|
|
|
Output type: U
|
1 analog voltage output 0-10 V, rise/fall
|
|
|
Output type: IU
|
1 analog current output 4-20 mA + 1 analog voltage output 0-10 V, rise/fall
|
|
|
Output type: IE4
|
1 analog current output 4-20 mA + 1 switching output NPN, rise/fall, NO/NC
|
|
|
Output type: IE5
|
1 analog current output 4-20 mA + 1 switching output PNP, rise/fall, NO/NC
|
|
|
Output type: UE4
|
1 analog voltage output 0-10 V + 1 switching output NPN, rise/fall, NO/NC
|
|
|
Output type: UE5
|
1 analog voltage output 0-10 V + 1 switching output PNP, rise/fall, NO/NC
|
|
|
Output type: R4
|
1 digital output RS485 modbus-rtu
|
|
|
Weight
|
62 g
|
62 g
|
|
Electrical data
|
|||
|
Power-up Timer
|
< 500 ms
|
||
|
Operating voltage
|
10-30 V DC, reverse polarity protection
|
||
|
LED red light
|
No target is always bright , and no target flashes when studying
|
||
|
LED green Iight
|
Detected that the target is always bright , and the target flashes when studying
|
||
|
Overpower protection
|
200 mA , red light and green light flashing at the same time
|
||
|
Load impedance
|
I / 0-300 Ohm , U / > 1k Ohm
|
||
|
No-load current
|
≤ 30 mA
|
||
|
Structure
|
Cylindrical
|
||
|
Material
|
Plastic accessories, filled with epoxy resin
|
||
|

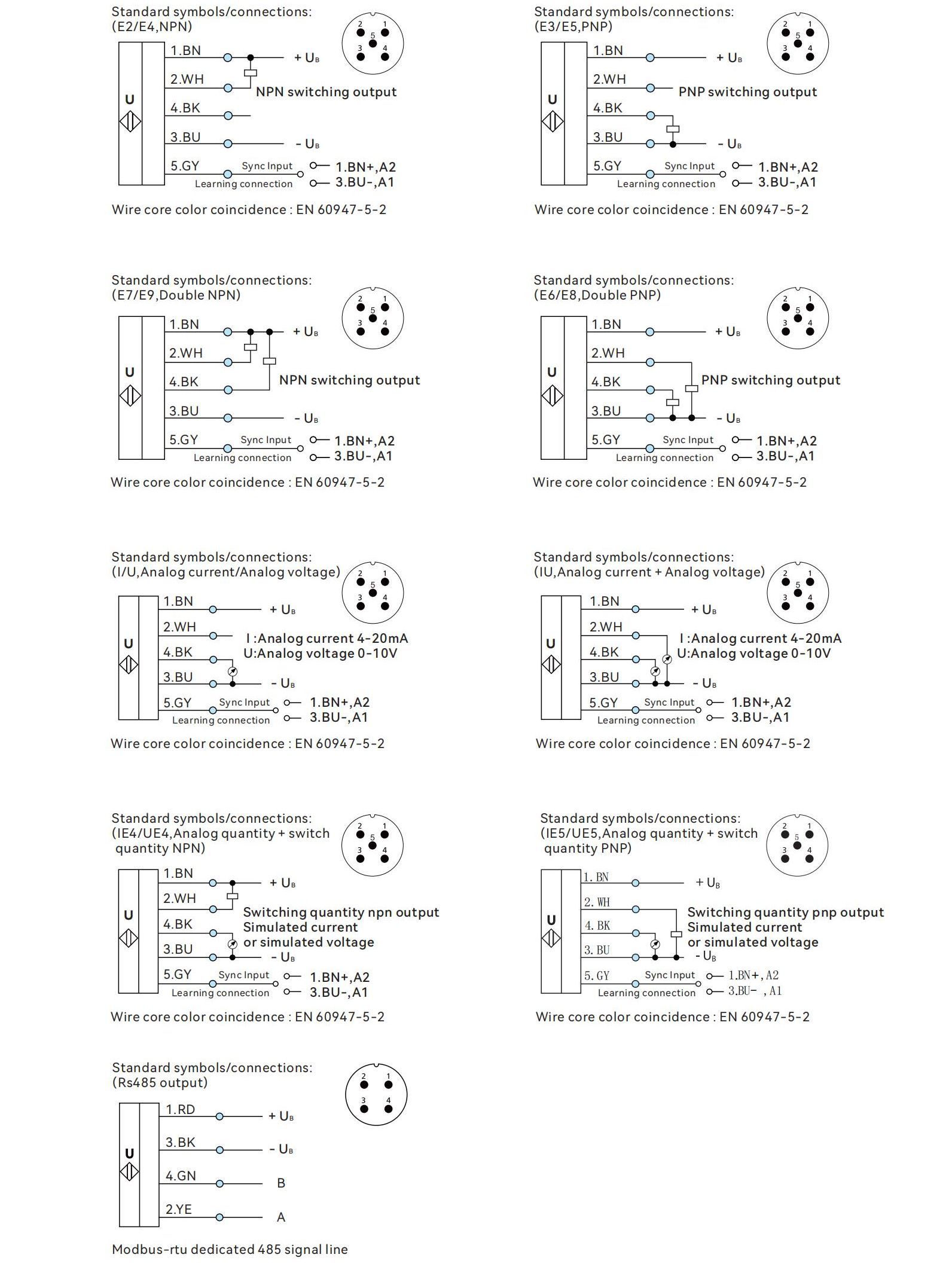

Connection type
|
5-pin M12 connector
|
||
|
Protection Class
|
IP 67
|
||
|
Environmental parameters
|
|||
|
Ambient temperature
|
-25°C~+70°C (248~343K)
|
||
|
Storage temperature
|
-40°C~+85°C (233~358K)
|
||
