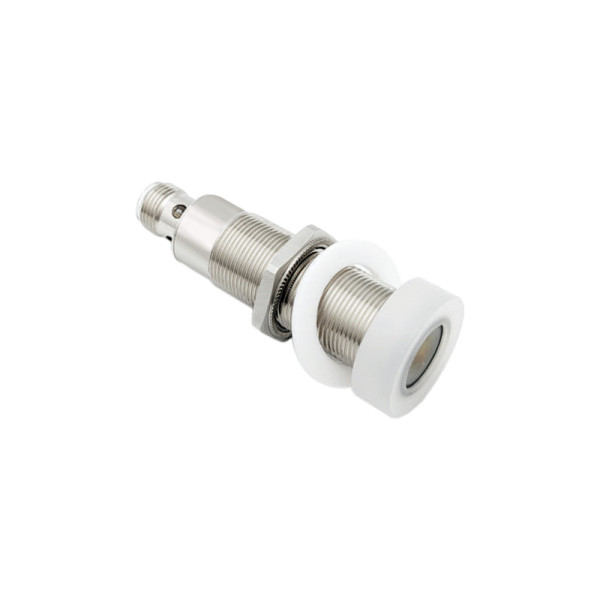

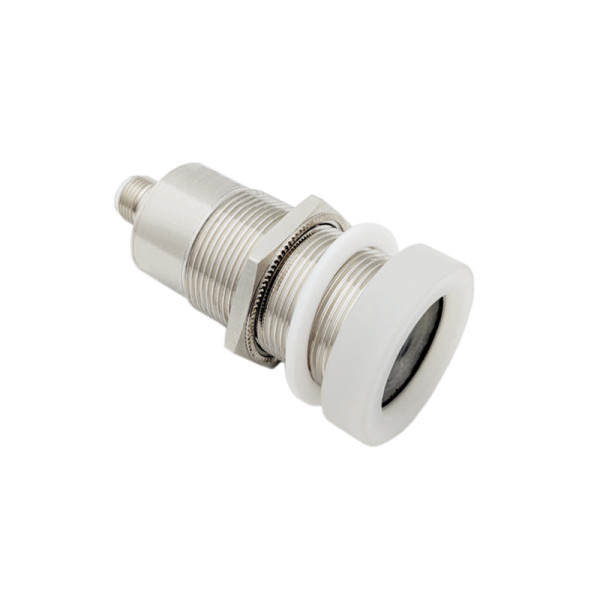

CSC30-2500-J60-I-V15 | Ultrasonic Sensor | DADISICK

CSC30-2500-J60-I-V15 | Ultrasonic Sensor | DADISICK

Liên hệ

Categories	CSC Series
Brand	DADISICK
Model	CSC Series \| CSC30-2500-J60-I-V15
Size:	Cylindrical 18 mm
Detection range:	150-2500 mm
Material:	Copper sleeve nickel plated
Connection type:	5-pin M12 connector
Output method:	Analog current 4-20mA
Security level:	IP67
Ambient temperature:	-25°C~+70°C (248~343K)

SKU: CSC30-2500-J60-I-V15 Danh mục: Cảm biến siêu âm (Ultrasonic sensors) Thẻ: CSC Series

Mô tả

CSC series analog output/digital output I/U/IU/RS485
Model	CSC18-1000-J55-I-V15	CSC30-2500-J60-I-V15
	CSC18-1000-J55-U-V15	CSC30-2500-J60-U-V15
	CSC18-1000-J55-R4-V15	CSC30-2500-J60-R4-V15
Detection range	60-1000 mm	150-2500 mm
Blind zone	0-60 mm	0-150 mm
Resolution	0.2 mm	0.2-0.5 mm
Repeatability	±0.15% of full-scale value
Absolute accuracy	±1% (built-in temperature drift compensation)
Response time	120 ms	160 ms
Input type	With synchronization and learning function
Output type: I	1 analog current output 4-20 mA, rise/fall
Output type: U	1 analog voltage output 0-10 V, rise/fall
Output type: R4	1 digital output RS485 modbus-rtu
Weight	45 g	145 g

Electrical data
Power-up Timer	< 500 ms
Operating voltage	10-30 V DC, reverse polarity protection
LED red light	No target is always bright , and no target flashes when studying
LED green Iight	Detected that the target is always bright , and the target flashes when studying
Overpower protection	200 mA , red light and green light flashing at the same time
Load impedance	I / 0-300 Ohm , U / > 1k Ohm
No-load current	≤ 30 mA

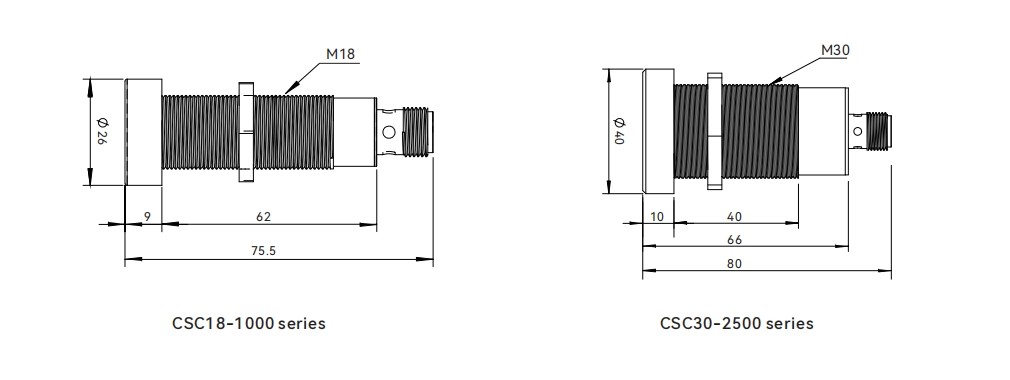

Structure	Cylindrical
Material	Copper sleeve nickel plated, flange probe made of PVDF material

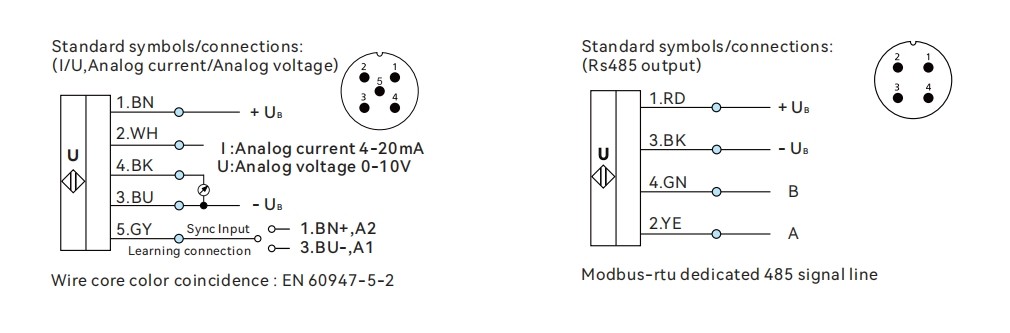

Connection type	5-pin M12 connector
Protection Class	IP 67
