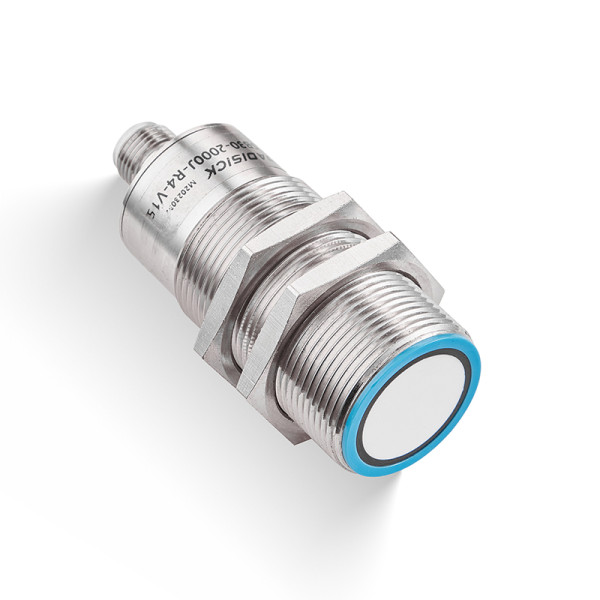

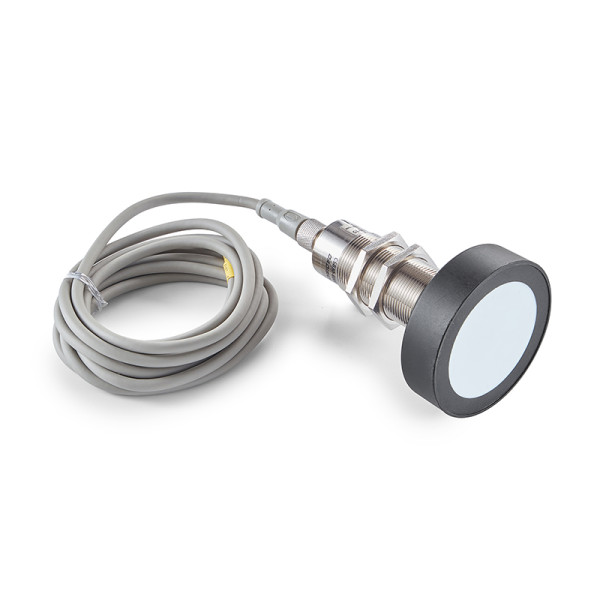

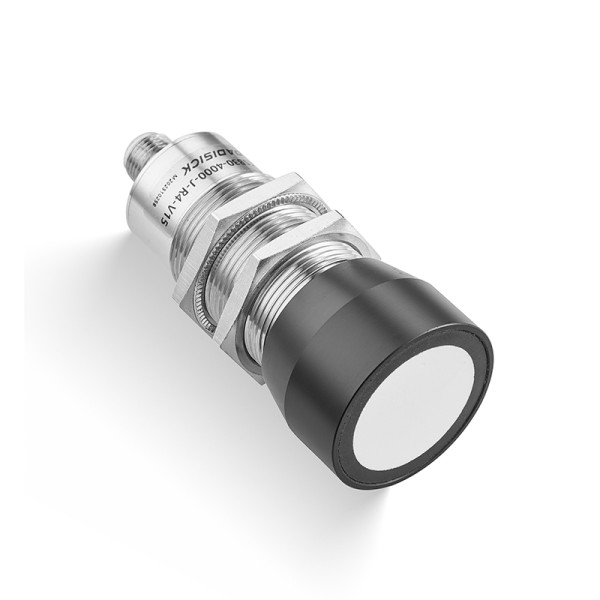

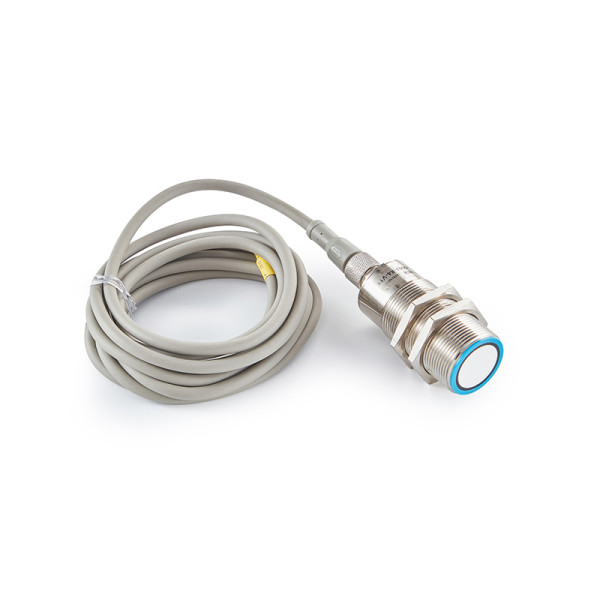

CSB30-6000-J70-UE4-V15 | Long Distance Ultrasonic Sensor | DADISICK
Liên hệ
| Categories | CSB30 Series |
|---|---|
| Brand | DADISICK |
| Model | CSB30 Series | CSB30-6000-J70-UE4-V15 |
| Size: | Cylindrical M30 mm |
| Detection range: | 350-6000 mm |
| Material: | Copper nickel plating, plastic fittings |
| Connection type: | 5-pin M12 connector |
| Output method: | Analog voltage 0-10V+NPN |
| Security level: | IP67 |
| Ambient temperature: | -25°C~+70°C (248~343K) |
|
CSB30 Series Switch Output E2/E3/E4/E5, E6/E7/E8/E9
|
|||
|
Model
|
CSB30-2000-J60-E2-V15
|
CSB30-4000-J60-E2-V15
|
CSB30-6000-J70-E2-V15
|
|
CSB30-2000-J60-E3-V15
|
CSB30-4000-J60-E3-V15
|
CSB30-6000-J70-E3-V15
|
|
|
CSB30-2000-J60-E4-V15
|
CSB30-4000-J60-E4-V15
|
CSB30-6000-J70-E4-V15
|
|
|
CSB30-2000-J60-E5-V15
|
CSB30-4000-J60-E5-V15
|
CSB30-6000-J70-E5-V15
|
|
|
CSB30-2000-J60-E6-V15
|
CSB30-4000-J60-E6-V15
|
CSB30-6000-J70-E6-V15
|
|
|
CSB30-2000-J60-E7-V15
|
CSB30-4000-J60-E7-V15
|
CSB30-6000-J70-E7-V15
|
|
|
CSB30-2000-J60-E8-V15
|
CSB30-4000-J60-E8-V15
|
CSB30-6000-J70-E8-V15
|
|
|
CSB30-2000-J60-E9-V15
|
CSB30-4000-J60-E9-V15
|
CSB30-6000-J70-E9-V15
|
|
|

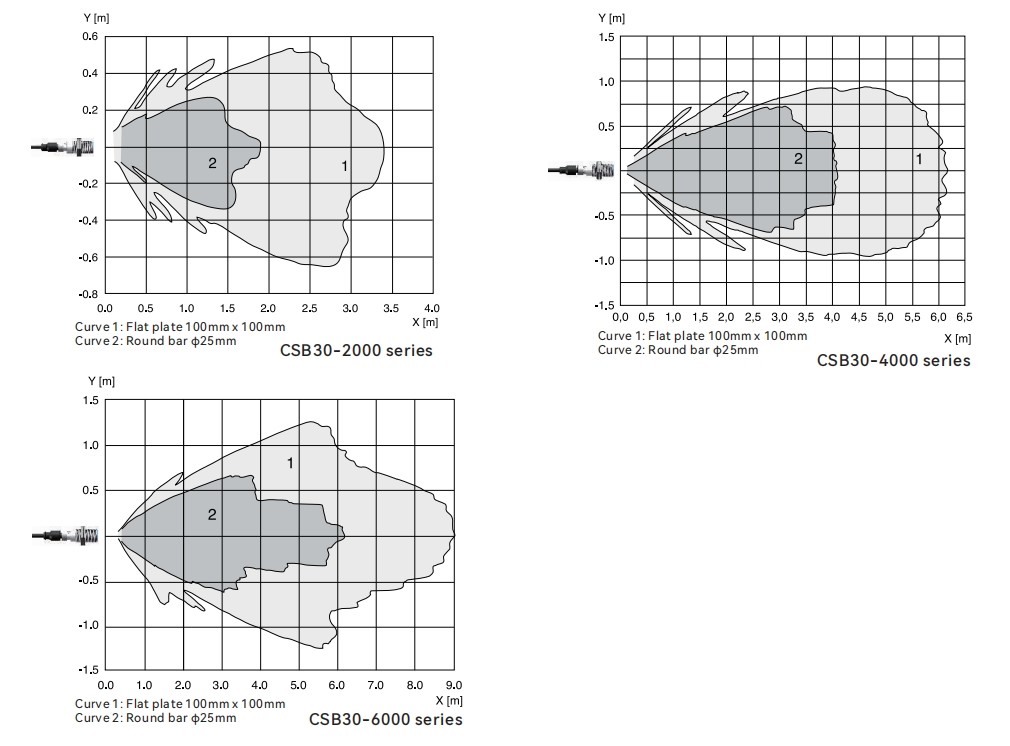

Detection range
|
100-2000 mm
|
200-4000 mm
|
350-6000 mm
|
|
Blind zone
|
0-100 mm
|
0-200 mm
|
0-350 mm
|
|
Resolution
|
0.17 mm
|
0.17-1.5 mm
|
0.17-2.5 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1% (built-in temperature drift compensation)
|
||
|
Response time
|
82 ms
|
162 ms
|
232 ms
|
|
Switching hysteresis
|
±2 mm
|
±4 mm
|
±5 mm
|
|
Switching frequency
|
10 Hz
|
5 Hz
|
4 Hz
|
|
Input type
|
With synchronization and learning function
|
||
|
Output type: E2/E4
|
1 NPN switch output, NO/NC
|
||
|
Output type: E3/E5
|
1 PNP switch output, NO/NC
|
||
|
Output type: E6/E8
|
2 PNP switch output, NO/NC
|
||
|
Output type: E7/E9
|
2 NPN switch output, NO/NC
|
||
|
Weight
|
105 g
|
145 g
|
185 g
|
|
CSB30 Series IO-Link Output 2EP-IO, IUEP-IO
|
|||
|
Model
|
CSB30-2000-J60-2EP-IO-V15
|
CSB30-4000-J60-2EP-IO-V15
|
CSB30-6000-J70-2EP-IO-V15
|
|
CSB30-2000-J60-IUEP-IO-V15
|
CSB30-4000-J60-IUEP-IO-V15
|
CSB30-6000-J70-IUEP-IO-V15
|
|
|
Detection range
|
100-2000 mm
|
200-4000 mm
|
350-6000 mm
|
|
Blind zone
|
0-100 mm
|
0-200 mm
|
0-350 mm
|
|
Resolution
|
0.17 mm
|
0.17-1.5 mm
|
0.17-2.5 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1 % (built-in temperature drift compensation)
|
||
|
Response time
|
82 ms
|
162 ms
|
232 ms
|
|
Switching hysteresis
|
±2 mm
|
±4 mm
|
±5 mm
|
|
Switching frequency
|
10 Hz
|
5 Hz
|
4 Hz
|
|
Input type
|
With synchronization and learning function
|
||
|
Output type: 2EP-IO
|
2 push pulls, support IO-Link output
|
||
|
Output type: IUEP-IO
|
1 analog output, analog current 4-20 mA or analog voltage 0-10 V+1 push pull output, supports IO-Link output
|
||
|
Weight
|
105 g
|
145 g
|
185 g
|
|
CSB30 Series Analog Output/Digital Output I/U/IU/IE4/UE4, RS485
|
|||
|
Model
|
CSB30-2000-J60-I-V15
|
CSB30-4000-J60-I-V15
|
CSB30-6000-J70-I-V15
|
|
CSB30-2000-J60-U-V15
|
CSB30-4000-J60-U-V15
|
CSB30-6000-J70-U-V15
|
|
|
CSB30-2000-J60-IU-V15
|
CSB30-4000-J60-IU-V15
|
CSB30-6000-J70-IU-V15
|
|
|
CSB30-2000-J60-IE4-V15
|
CSB30-4000-J60-IE4-V15
|
CSB30-6000-J70-IE4-V15
|
|
|
CSB30-2000-J60-IE5-V15
|
CSB30-4000-J60-IE5-V15
|
CSB30-6000-J70-IE5-V15
|
|
|
CSB30-2000-J60-UE4-V15
|
CSB30-4000-J60-UE4-V15
|
CSB30-6000-J70-UE4-V15
|
|
|
CSB30-2000-J60-UE5-V15
|
CSB30-4000-J60-UE5-V15
|
CSB30-6000-J70-UE5-V15
|
|
|
CSB30-2000-J60-R4-V15
|
CSB30-4000-J60-R4-V15
|
CSB30-6000-J70-R4-V15
|
|
|
Detection range
|
100-2000 mm
|
200-4000 mm
|
350-6000 mm
|
|
Blind zone
|
0-100 mm
|
0-200 mm
|
0-350 mm
|
|
Resolution
|
0.17 mm
|
0.17-1.5 mm
|
0.17-2.5 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1% (built-in temperature drift compensation)
|
||
|
Response time
|
82 ms
|
162 ms
|
232 ms
|
|
Switching hysteresis
|
±2 mm
|
±4 mm
|
±5 mm
|
|
Switching frequency
|
10 Hz
|
5 Hz
|
4 Hz
|
|
Input type
|
With synchronization and learning function
|
||
|
Output type: I
|
1 analog current output 4-20 mA, rise/fall
|
||
|
Output type: U
|
1 analog voltage output 0-10 V, rise/fall
|
||
|
Output type: IU
|
1 analog current output 4-20 mA + 1 analog voltage output 0-10 V, rise/fall
|
||
|
Output type: IE4
|
1 analog current output 4-20 mA + 1 switching output NPN, rise/fall, NO/NC
|
||
|
Output type: IE5
|
1 analog current output 4-20 mA + 1 switching output PNP, rise/fall, NO/NC
|
||
|
Output type: UE4
|
1 analog voltage output 0-10 V + 1 switching output NPN, rise/fall, NO/NC
|
||
|
Output type: UE5
|
1 analog voltage output 0-10 V + 1 switching output PNP, rise/fall, NO/NC
|
||
|
Output type: R4
|
1 digital output RS485 modbus-rtu
|
||
|
Weight
|
105 g
|
145 g
|
185 g
|
|

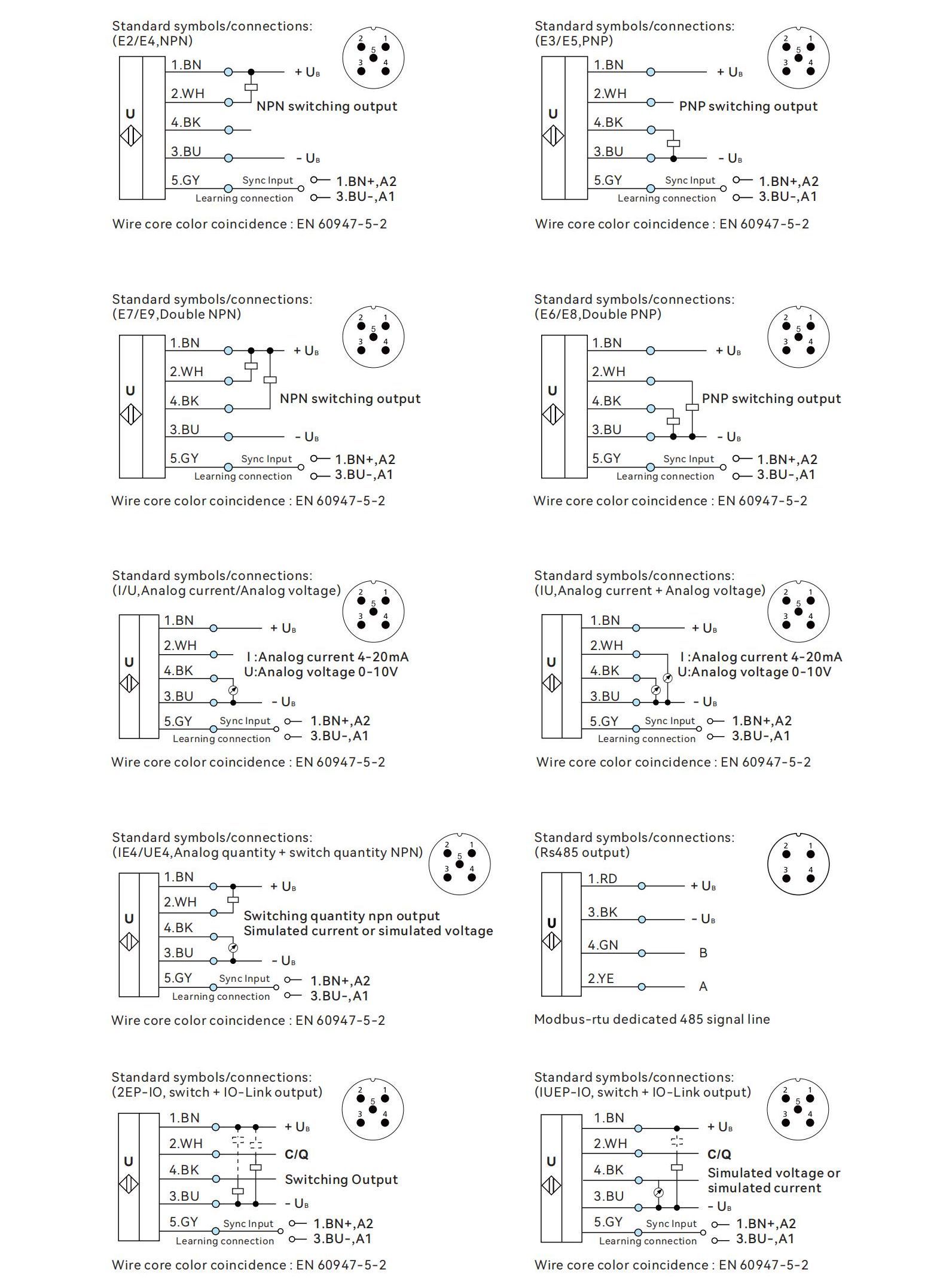

Electrical Data
|
|||
|
Power-up Timer
|
< 500 ms
|
||
|
Operating voltage
|
10-30 V DC, reverse polarity protection
|
||
|
LED red light
|
No target is always bright , and no target flashes when studying
|
||
|
LED green Iight
|
Detected that the target is always bright , and the target flashes when studying
|
||
|
Overpower protection
|
200 mA , red light and green light flashing at the same time
|
||
|
Load impedance
|
I / 0-300 Ohm , U / > 1k Ohm
|
||
|
No-load current
|
≤ 30 mA
|
||
|

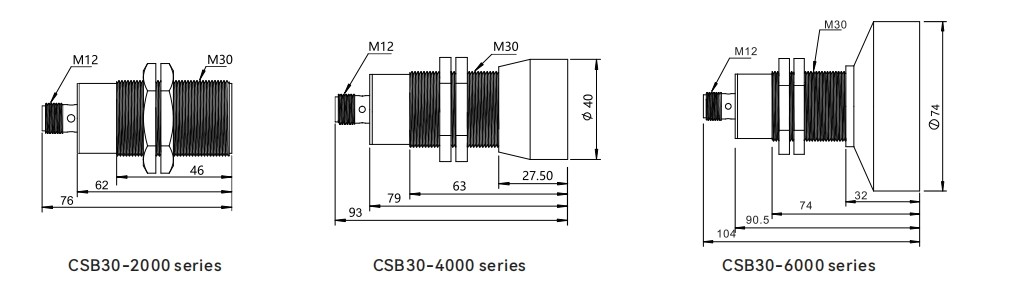

Structure
|
Cylindrical
|
||
|
Material
|
Copper nickel plating , plastic fittings , glass filled epoxy resin
|
||
|
Connection type
|
5-pin M12 connector
|
||
|
Protection Class
|
IP 67
|
||
|
Environmental Parameters
|
|||
|
Ambient temperature
|
-25°C~+70°C (248~343K)
|
||
|
Storage temperature
|
-40°C~+85°C (233~358K)
|
||
