CSB18-1000-JA55-IE4-V15 | Ultrasonic Position | DADISICK
Liên hệ
| Categories | CSB18 Vertical Series |
|---|---|
| Brand | DADISICK |
| Model | CSB18 vertical series | CSB18-1000-JA55-IE4-V15 |
| Size: | Cylindrical M18 mm |
| Detection range: | 60-1000 mm |
| Material: | Copper nickel plating, plastic fittings |
| Connection type: | 5-pin M12 connector |
| Output method: | Analog current 4-20mA+NPN |
| Security level: | IP67 |
| Ambient temperature: | -25°C~+70°C (248~343K) |
|

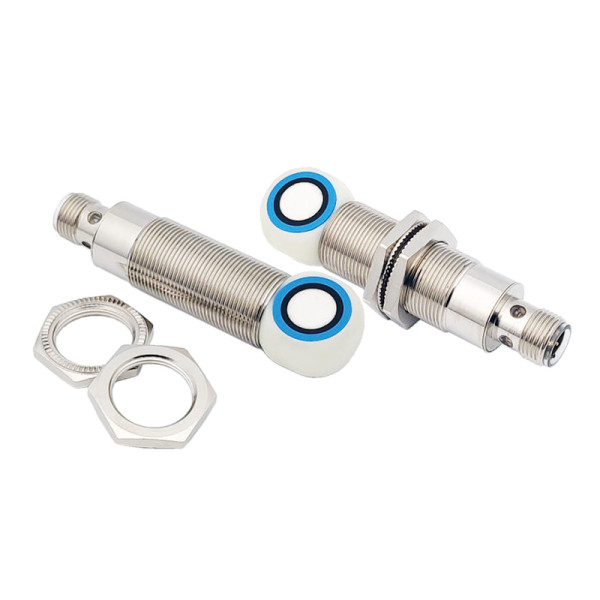

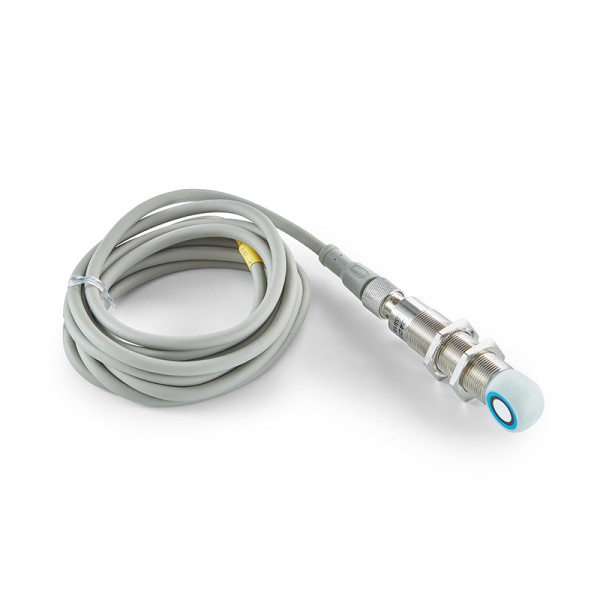

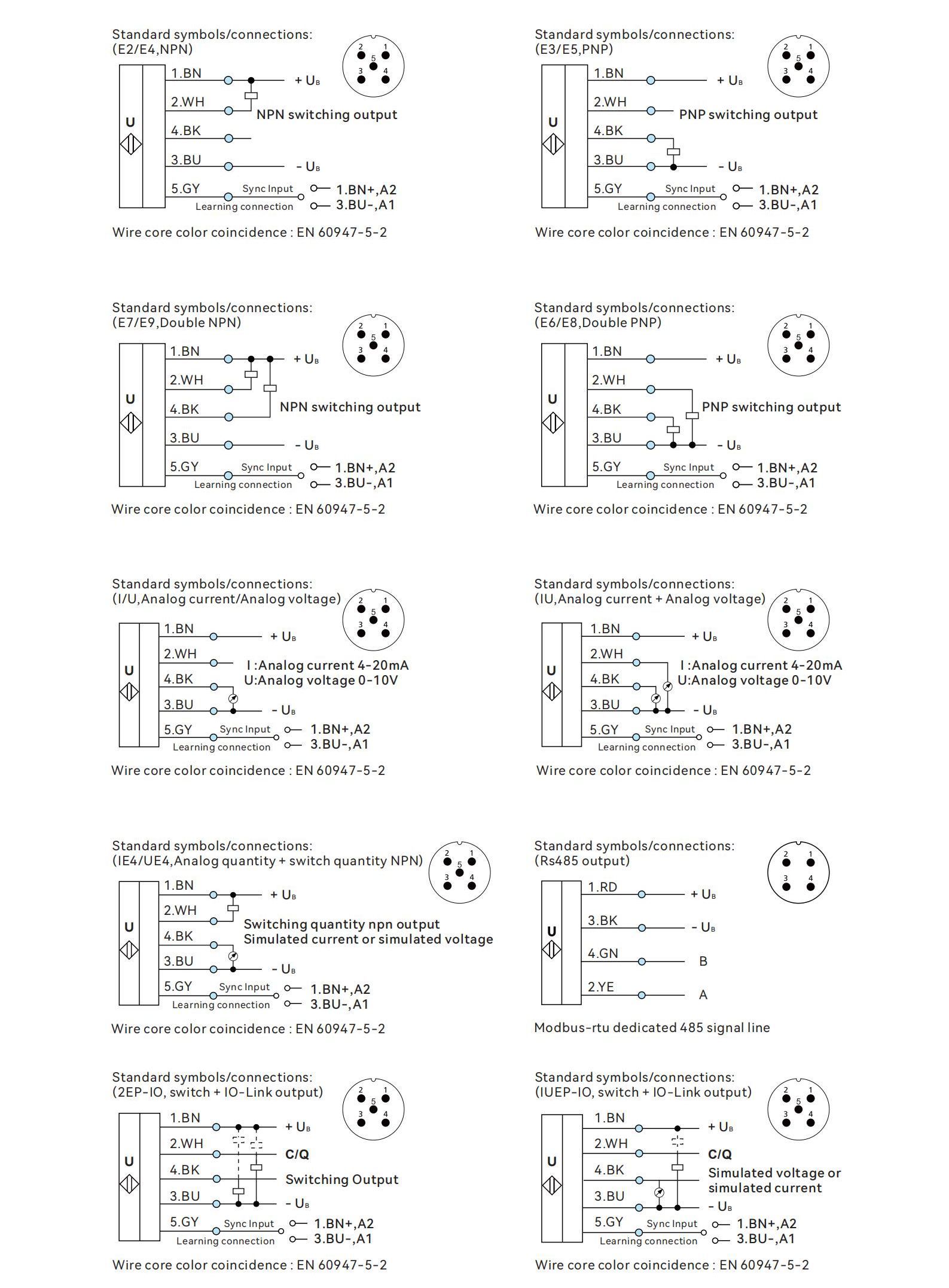

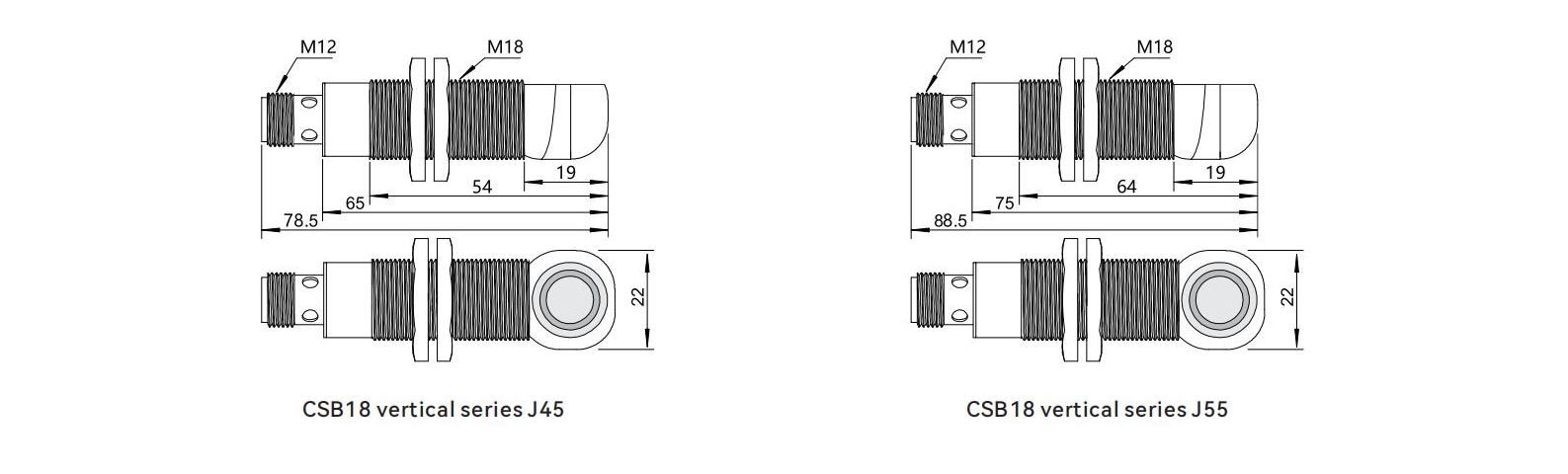

CSB18 vertical series switch output E2/E3/E4/E5, E6/E7/E8/E9
|
|||
|
Model
|
CSB18-300-JA45-E2-V15
|
CSB18-500-JA45-E2-V15
|
CSB18-1000-JA55-E2-V15
|
|
CSB18-300-JA45-E3-V15
|
CSB18-500-JA45-E3-V15
|
CSB18-1000-JA55-E3-V15
|
|
|
CSB18-300-JA45-E4-V15
|
CSB18-500-JA45-E4-V15
|
CSB18-1000-JA55-E4-V15
|
|
|
CSB18-300-JA45-E5-V15
|
CSB18-500-JA45-E5-V15
|
CSB18-1000-JA55-E5-V15
|
|
|
CSB18-300-JA45-E6-V15
|
CSB18-500-JA45-E6-V15
|
CSB18-1000-JA55-E6-V15
|
|
|
CSB18-300-JA45-E7-V15
|
CSB18-500-JA45-E7-V15
|
CSB18-1000-JA55-E7-V15
|
|
|
CSB18-300-JA45-E8-V15
|
CSB18-500-JA45-E8-V15
|
CSB18-1000-JA55-E8-V15
|
|
|
CSB18-300-JA45-E9-V15
|
CSB18-500-JA45-E9-V15
|
CSB18-1000-JA55-E9-V15
|
|
|

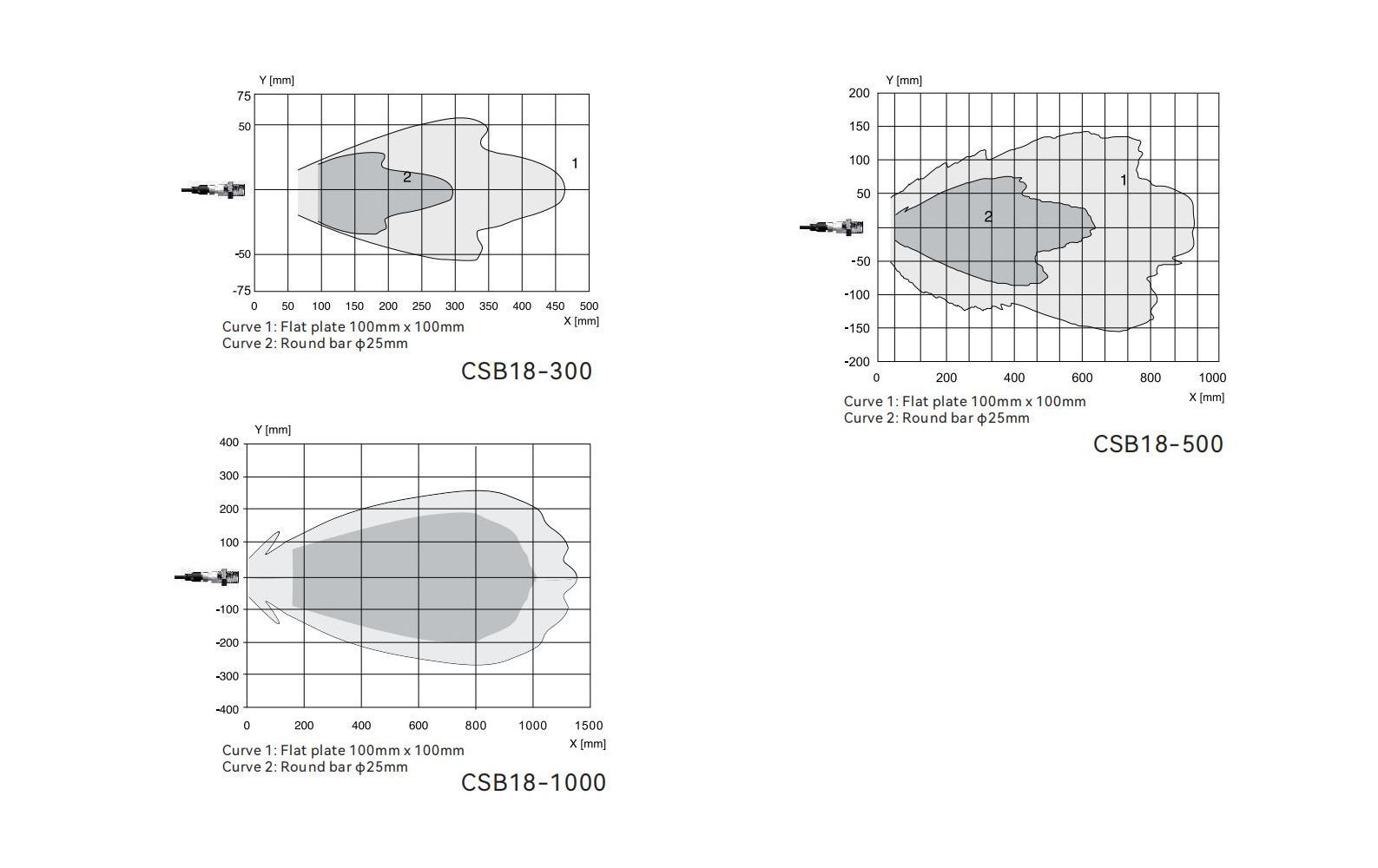

Detection range
|
30-300 mm
|
50-500 mm
|
60-1000 mm
|
|
Blind zone
|
0-30 mm
|
0-50 mm
|
0-60 mm
|
|
Resolution
|
0.1 mm
|
0.15 mm
|
0.17 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1% (built-in temperature drift compensation)
|
||
|
Response time
|
22 ms
|
32 ms
|
52 ms
|
|
Switching hysteresis
|
2 mm
|
2 mm
|
2 mm
|
|
Switching frequency
|
45 Hz
|
31 Hz
|
19 Hz
|
|
Input type
|
With synchronization and learning function
|
||
|
Output type: E2/E4
|
1 NPN switch output, NO/NC
|
||
|
Output type: E3/E5
|
1 PNP switch output, NO/NC
|
||
|
Output type: E6/E8
|
2 PNP switch output, NO/NC
|
||
|
Output type: E7/E9
|
2 NPN switch output, NO/NC
|
||
|
Weight
|
35 g
|
35 g
|
38 g
|
|
CSB18 vertical series IO-Link output 2EP-IO,IUEP-IO
|
|||
|
Model
|
CSB18-300-JA55-2EP-IO-V15
|
CSB18-500-JA55-2EP-IO-V15
|
CSB18-1000-JA55-2EP-IO-V15
|
|
CSB18-300-JA55-IUEP-IO-V15
|
CSB18-500-JA55-IUEP-IO-V15
|
CSB18-1000-JA55-IUEP-IO-V15
|
|
|
Detection range
|
30-300 mm
|
50-500 mm
|
60-1000 mm
|
|
Blind zone
|
0-30 mm
|
0-50 mm
|
0-60 mm
|
|
Resolution
|
0.1 mm
|
0.15 mm
|
0.17 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1% (built-in temperature drift compensation)
|
||
|
Response time
|
22 ms
|
32 ms
|
52 ms
|
|
Switching hysteresis
|
2 mm
|
2 mm
|
2 mm
|
|
Switching frequency
|
45 Hz
|
31 Hz
|
19 Hz
|
|
Input type
|
With synchronization and learning function
|
||
|
Output type: 2EP-IO
|
2 push pulls, support IO-Link output
|
||
|
Output type: IUEP-IO
|
1 analog output, analog current 4-20 mA or analog voltage 0-10 V+1 push pull output, supports IO-Link output
|
||
|
Weight
|
35 g
|
35 g
|
38 g
|
|
CSB18 vertical series analog output/digital output I/U/IU/IE4/UE4, RS485
|
|||
|
Model
|
CSB18-300-JA45-I-V15
|
CSB18-500-JA45-I-V15
|
CSB18-1000-JA55-I-V15
|
|
CSB18-300-JA45-U-V15
|
CSB18-500-JA45-U-V15
|
CSB18-1000-JA55-U-V15
|
|
|
CSB18-300-JA45-IU-V15
|
CSB18-500-JA45-IU-V15
|
CSB18-1000-JA55-IU-V15
|
|
|
CSB18-300-JA45-IE4-V15
|
CSB18-500-JA45-IE4-V15
|
CSB18-1000-JA55-IE4-V15
|
|
|
CSB18-300-JA45-UE4-V15
|
CSB18-500-JA45-UE4-V15
|
CSB18-1000-JA55-UE4-V15
|
|
|
CSB18-300-JA45-R4-V15
|
CSB18-500-JA45-R4-V15
|
CSB18-1000-JA55-R4-V15
|
|
|
Detection range
|
30-300 mm
|
50-500 mm
|
60-1000 mm
|
|
Blind zone
|
0-30 mm
|
0-50 mm
|
0-60 mm
|
|
Resolution
|
0.1 mm
|
0.15 mm
|
0.17 mm
|
|
Repeatability
|
±0.15% of full-scale value
|
||
|
Absolute accuracy
|
±1% (built-in temperature drift compensation)
|
||
|
Response time
|
22 ms
|
32 ms
|
52 ms
|
|
Input type
|
With synchronization and learning function
|
||
|
Output type: I
|
1 analog current output 4-20 mA, rise/fall
|
||
|
Output type: U
|
1 analog voltage output 0-10 V, rise/fall
|
||
|
Output type: IU
|
1 analog current output 4-20 mA + 1 analog voltage output 0-10 V, rise/fall
|
||
|
Output type: IE4
|
1 analog current output 4-20 mA + 1 switching output NPN, rise/fall, NO/NC
|
||
|
Output type: UE4
|
1 analog voltage output 0-10 V + 1 switching output NPN, rise/fall, NO/NC
|
||
|
Output type: R4
|
1 digital output RS485 modbus-rtu
|
||
|
Weight
|
35 g
|
35 g
|
38 g
|
|
Electrical data
|
|||
|
Power-up Timer
|
< 500 ms
|
||
|
Operating voltage
|
10-30 V DC, reverse polarity protection
|
||
|
LED red light
|
No target is always bright , and no target flashes when studying
|
||
|
LED green Iight
|
Detected that the target is always bright , and the target flashes when studying
|
||
|
Overpower protection
|
200 mA , red light and green light flashing at the same time
|
||
|
Load impedance
|
I / 0-300 Ohm , U / > 1k Ohm
|
||
|
No-load current
|
≤ 30 mA
|
||
|
Structure
|
Cylindrical
|
||
|
Material
|
Copper nickel plating , plastic fittings , glass filled epoxy resin
|
||
|
Connection type
|
5-pin M12 connector
|
||
|
Protection Class
|
IP 67
|
||
|
Environmental parameters
|
|||
|
Ambient temperature
|
-25°C~+70°C (248~343K)
|
||
|
Storage temperature
|
-40°C~+85°C (233~358K)
|
||
