Ultrasonic Sensors CSR30 Series | Ultrasonic Sensor | DADISICK

Liên hệ

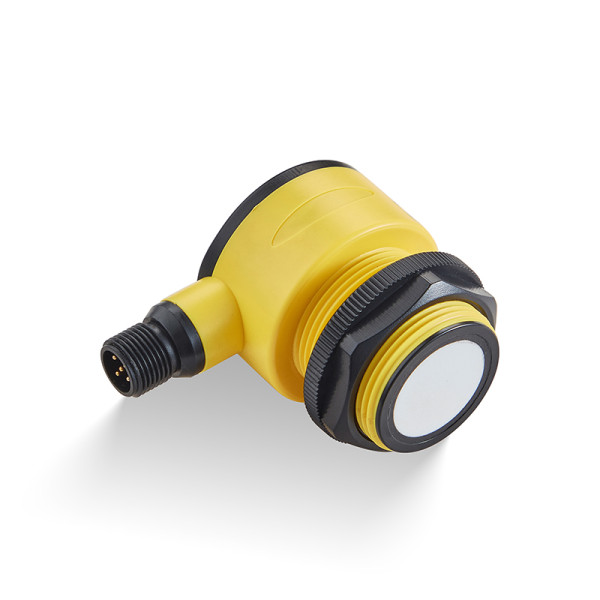

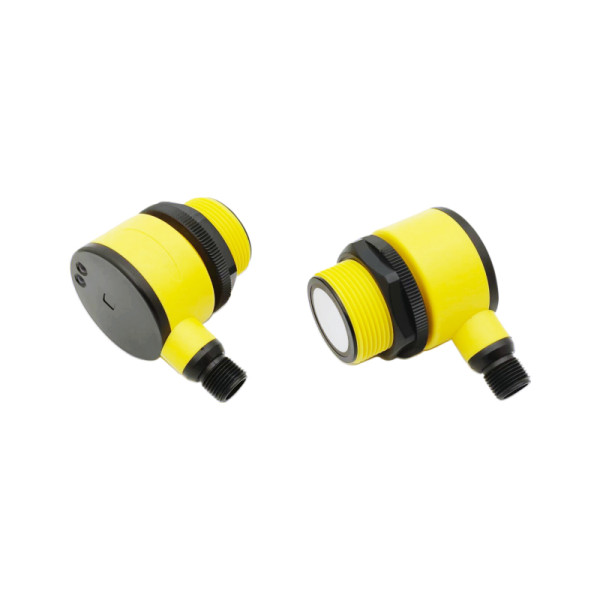

Categories	CSR30 Series
Brand	DADISICK
Model	CSR30 series
Size:	Cylindrical M30 mm
Detection range:	100-2000 mm
Detection range:	150-3000 mm
Material:	Plastic accessories, filled with epoxy resin
Connection type:	5-pin M12 connector
Security level:	IP67
Ambient temperature:	-25°C~+70°C (248~343K)

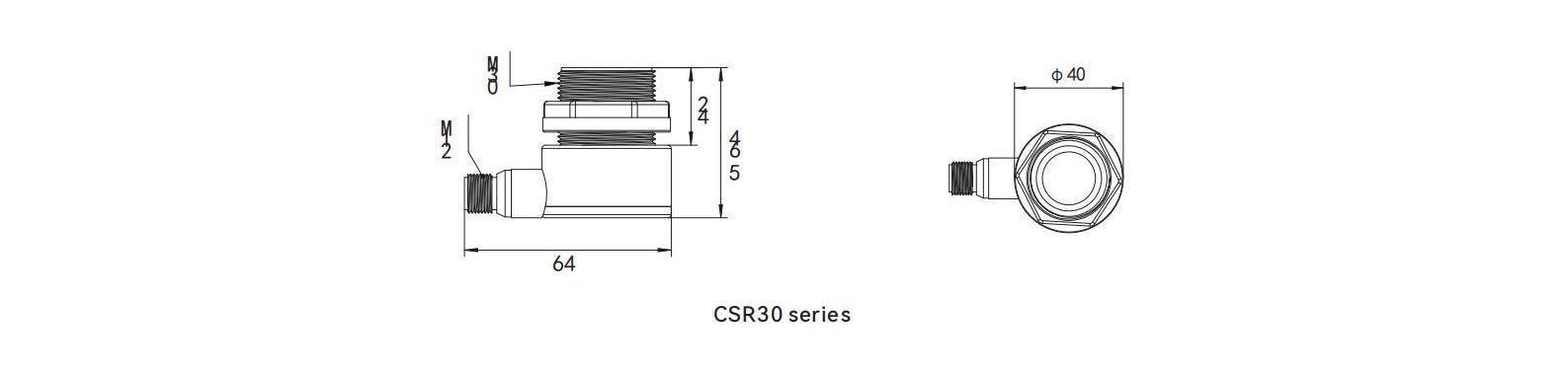

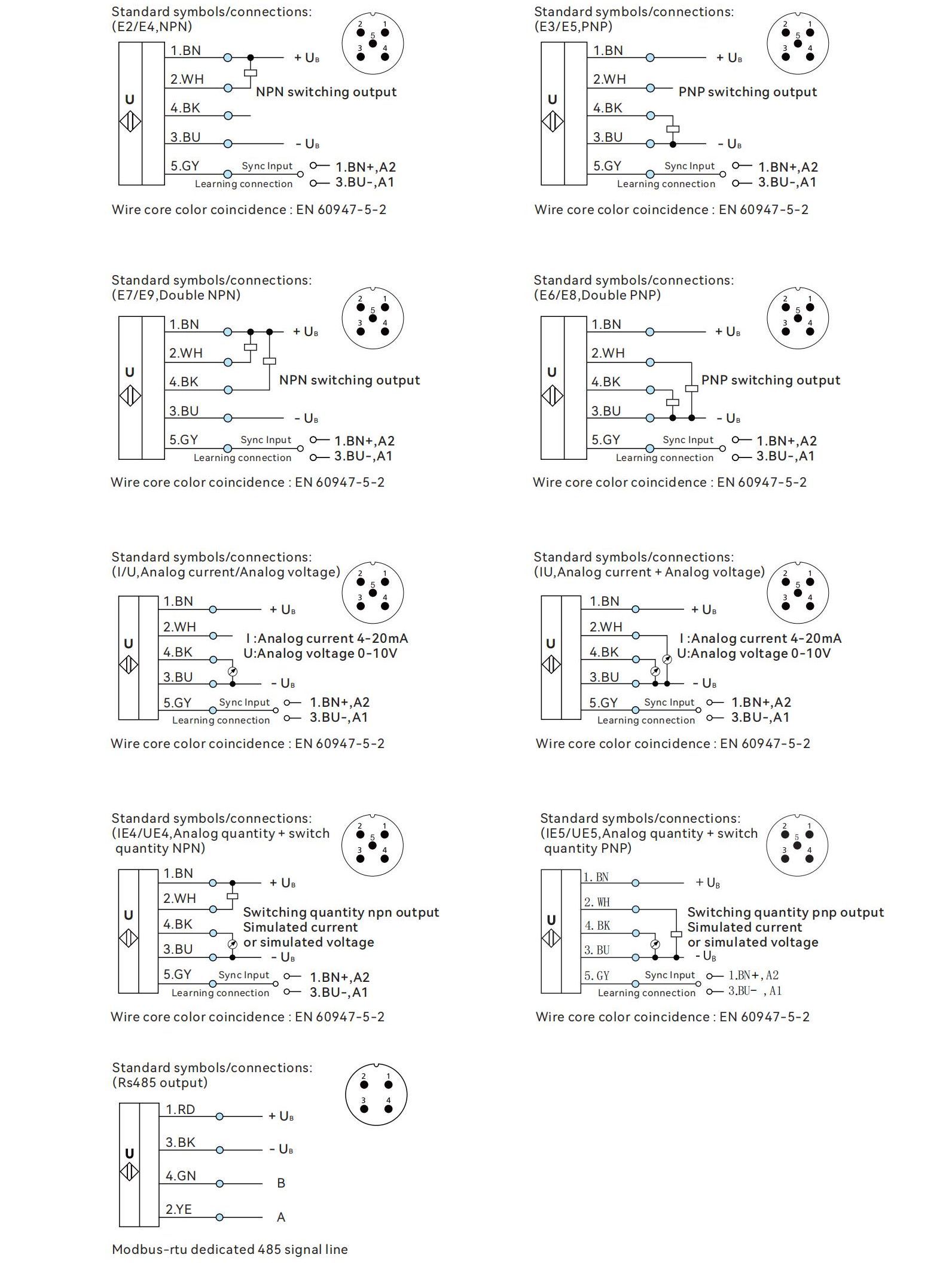

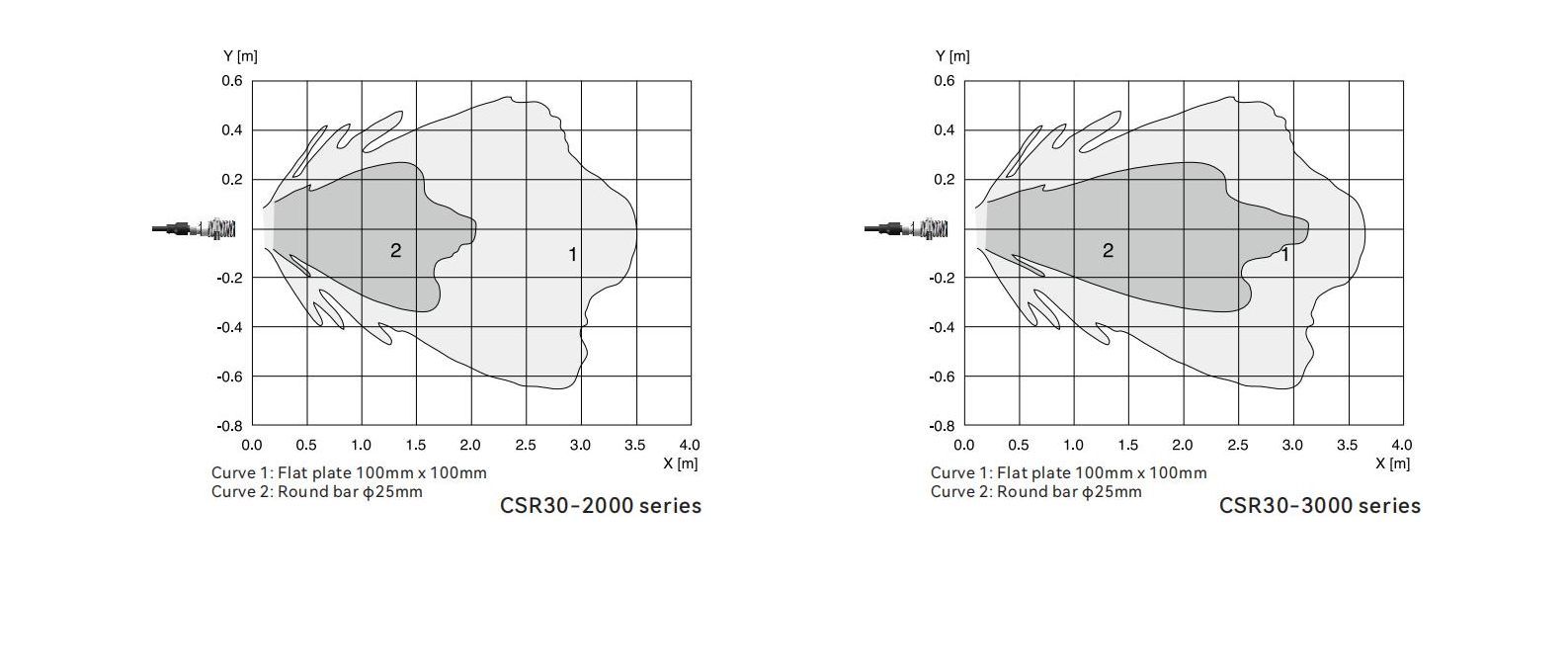

CSR30 series switch output E2/E3/E4/E5, E6/E7/E8/E9
Model	CSR30-2000-E2-V15	CSR30-3000-E2-V15
	CSR30-2000-E3-V15	CSR30-3000-E3-V15
	CSR30-2000-E4-V15	CSR30-3000-E4-V15
	CSR30-2000-E5-V15	CSR30-3000-E5-V15
	CSR30-2000-E6-V15	CSR30-3000-E6-V15
	CSR30-2000-E7-V15	CSR30-3000-E7-V15
	CSR30-2000-E8-V15	CSR30-3000-E8-V15
	CSR30-2000-E9-V15	CSR30-3000-E9-V15
Detection range	100-2000 mm	150-3000 mm
Blind zone	0-100 mm	0-150 mm
Resolution	0.17 mm	0.17 mm
Repeatability	±0.15% of full-scale value
Absolute accuracy	±1% (built-in temperature drift compensation)
Response time	82 ms	102 ms
Switching hysteresis	±2 mm	±3 mm
Switching frequency	10 Hz	9 Hz
Input type	With synchronization and learning function
Output type: E2/E4	1 NPN switch output, NO/NC
Output type: E3/E5	1 PNP switch output, NO/NC
Output type: E6/E8	2 PNP switch output, NO/NC
Output type: E7/E9	2 NPN switch output, NO/NC
Weight	62 g	62 g

CSR30 series analog output/digital output I/U/IU/IE4/UE4, RS485
Model	CSR30-2000-I-V15	CSR30-3000-I-V15
	CSR30-2000-U-V15	CSR30-3000-U-V15
	CSR30-2000-IU-V15	CSR30-3000-IU-V15
	CSR30-2000-IE4-V15	CSR30-3000-IE4-V15
	CSR30-2000-IE5-V15	CSR30-3000-IE5-V15
	CSR30-2000-UE4-V15	CSR30-3000-UE4-V15
	CSR30-2000-UE5-V15	CSR30-3000-UE5-V15
	CSR30-2000-R4-V15	CSR30-3000-R4-V15
Detection range	100-2000 mm	150-3000 mm
Blind zone	0-100 mm	0-150 mm
Resolution	0.17 mm	0.17 mm
Repeatability	±0.15% of full-scale value
Absolute accuracy	±1% (built-in temperature drift compensation)
Response time	82 ms	102 ms
Switching hysteresis	±2 mm	±3 mm
Switching frequency	10 Hz	9 Hz
Input type	With synchronization and learning function
Output type: I	1 analog current output 4-20 mA, rise/fall
Output type: U	1 analog voltage output 0-10 V, rise/fall
Output type: IU	1 analog current output 4-20 mA + 1 analog voltage output 0-10 V, rise/fall
Output type: IE4	1 analog current output 4-20 mA + 1 switching output NPN, rise/fall, NO/NC
Output type: IE5	1 analog current output 4-20 mA + 1 switching output PNP, rise/fall, NO/NC
Output type: UE4	1 analog voltage output 0-10 V + 1 switching output NPN, rise/fall, NO/NC
Output type: UE5	1 analog voltage output 0-10 V + 1 switching output PNP, rise/fall, NO/NC
Output type: R4	1 digital output RS485 modbus-rtu
Weight	62 g	62 g

Electrical data
Power-up Timer	< 500 ms
Operating voltage	10-30 V DC, reverse polarity protection
LED red light	No target is always bright , and no target flashes when studying
LED green Iight	Detected that the target is always bright , and the target flashes when studying
Overpower protection	200 mA , red light and green light flashing at the same time
Load impedance	I / 0-300 Ohm , U / > 1k Ohm
No-load current	≤ 30 mA
Structure	Cylindrical
Material	Plastic accessories, filled with epoxy resin
Connection type	5-pin M12 connector
Protection Class	IP 67
