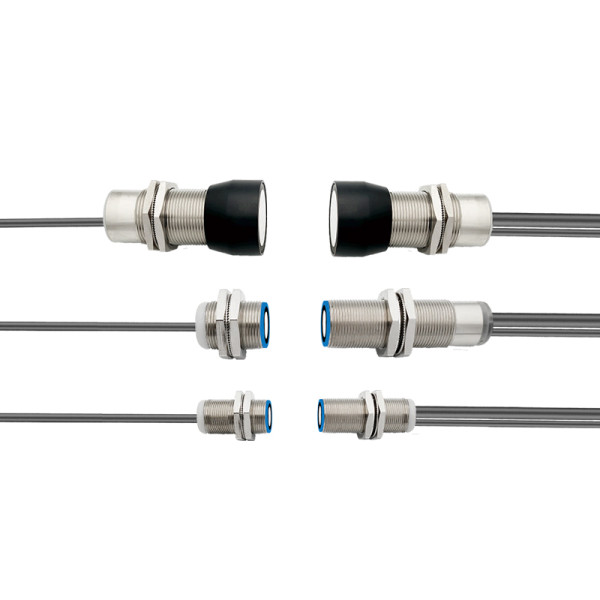

Ultrasonic Sensors CSDA Series | Double Sheet Detection Sensor | DADISICK

Liên hệ

Categories	CSDA Series
Brand	DADISICK

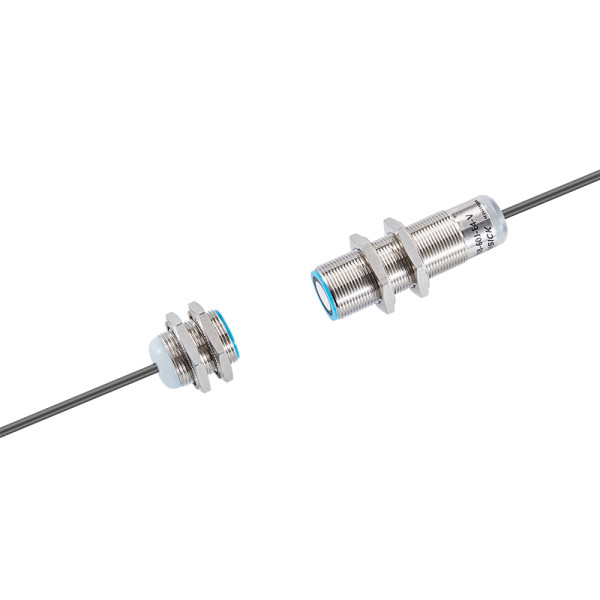

Model	CSDA12 series \| CSDA18 series \| CSDA30 series

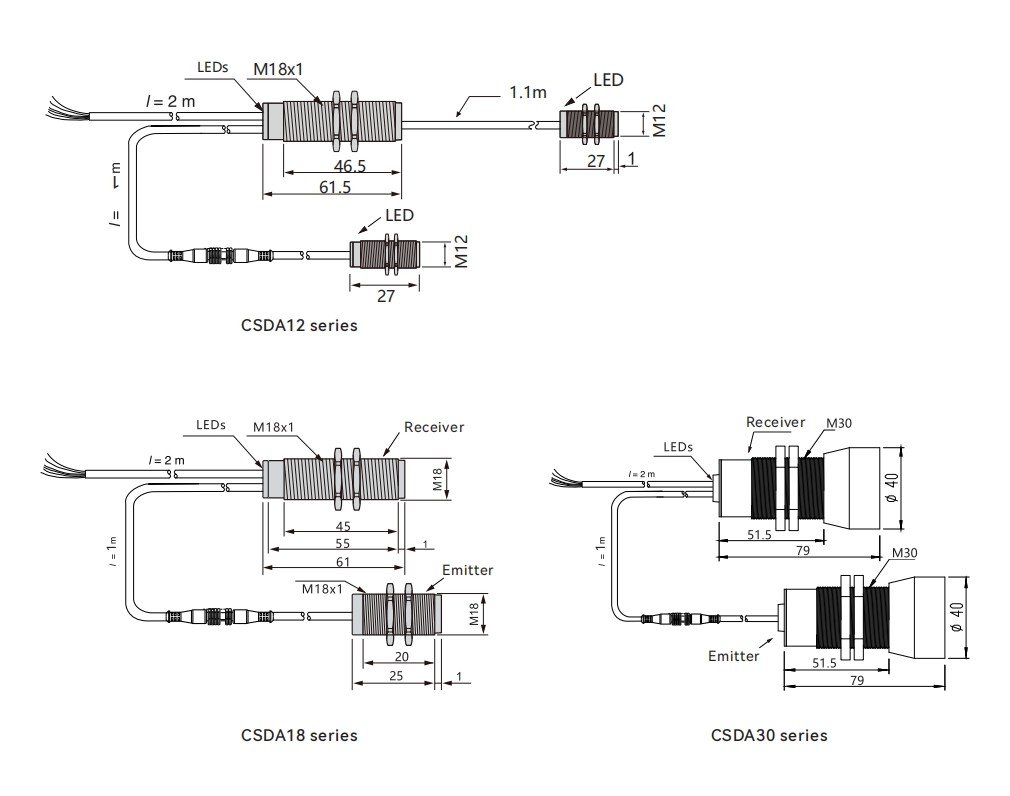

Size:	Cylindrical M12 mm \| M18 mm \| M30 mm
Emitter – receiver spacing:	20-40 mm
Emitter – receiver spacing:	20-60 mm
Emitter – receiver spacing:	20-100 mm
Material:	Nickel plated copper, plastic fittings

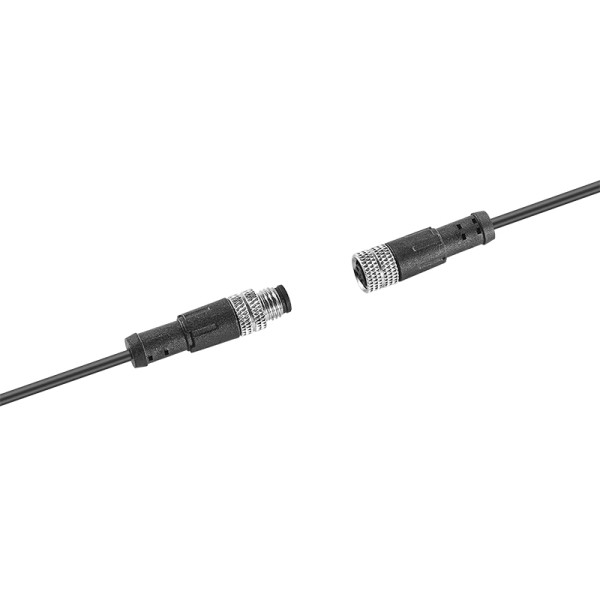

Connection type:	2 m, PVP cable, 0.14 mm²
Ambient temperature:	-25°C~+70°C (248~343K)

CSDA single and double sheet detection series 3-way control output 3E1/3E2/3E3/3E4
Model	CSDA12-40-J25-3E1	CSDA18-60-J55-3E1	CSDA30-100-J55-3E1
	CSDA12-40-J25-3E2	CSDA18-60-J55-3E2	CSDA30-100-J55-3E2
	CSDA12-40-J25-3E3	CSDA18-60-J55-3E3	CSDA30-100-J55-3E3
	CSDA12-40-J25-3E4	CSDA18-60-J55-3E4	CSDA30-100-J55-3E4
Emitter – Receiver spacing	20-40 mm	20-60 mm	20-100 mm
Blind zone	5 mm in front	7 mm in front	7 mm in front
Maximum allowable angle deviation	±45° to the vertical plane

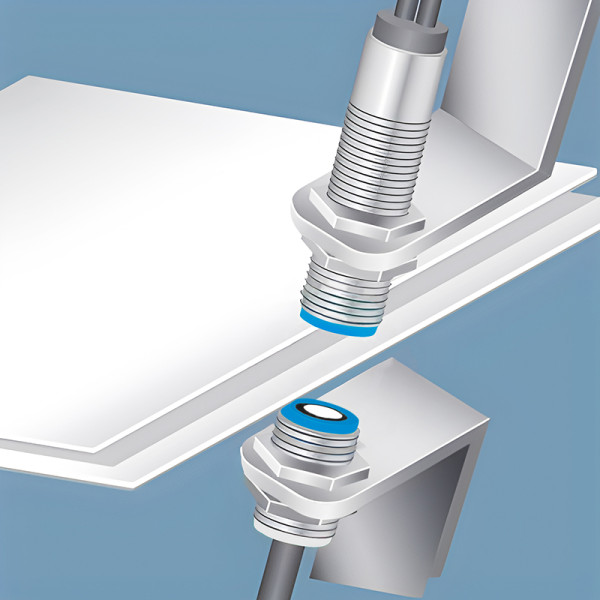

Scope of work	Paper and paper with a unit area weight of 20-60 g/m², alloy laminates and film swith a thickness of 0.2 mm, automatic adhesive films	< 1 mm thick metal composite board and film, self-adhesive sheets, labels on substrate materials > 0.01 mm paper, PCB board, silicon wafer	< 3 mm thick metal plate

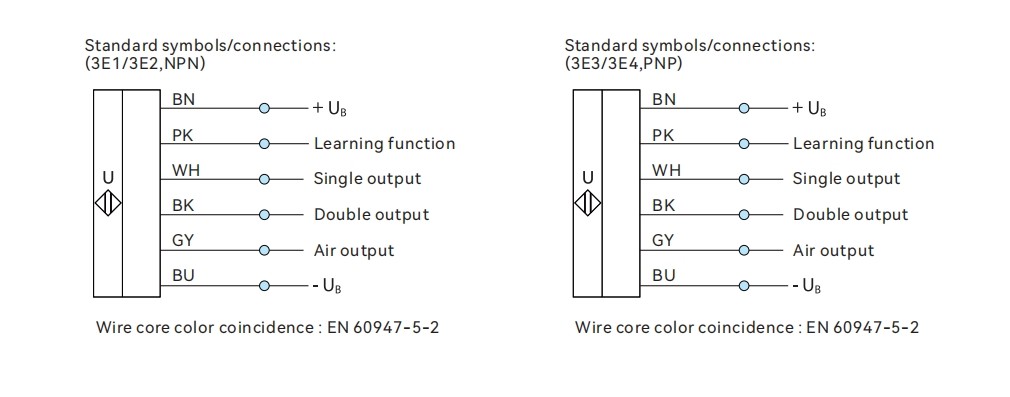

Output type: 3E1/3E2	3 switching outputs NPN, NO/NC
Output type: 3E3/3E4	3 switching outputs PNP, NO/NC
Response delay	4 ms	10 ms	10 ms
Weight	200 g	220 g	480 g

Electrical data
Response delay	10 ms
Operating voltage	10-30 V DC, reverse polarity protection
LED green Iight	Tip: Single sheet detected
LED yellow Iight	Tip: No target (air)
LED red light	Tip: Double sheet detected
Overpower protection	200 mA , red light and green light flashing at the same time
Impedance	≥ 4 KΩ
Working current	3 x 200 mA short circuit protection / overload protection
No-load current	≤ 30 mA
Material	Copper nickel plating , plastic fittings , glass filled epoxy resin
Connection type	2 m, PVP cable, 0.14 mm²
Drop	≤ 2 V
Pulse width	≥ 100 ms
Protection Class	IP 67
