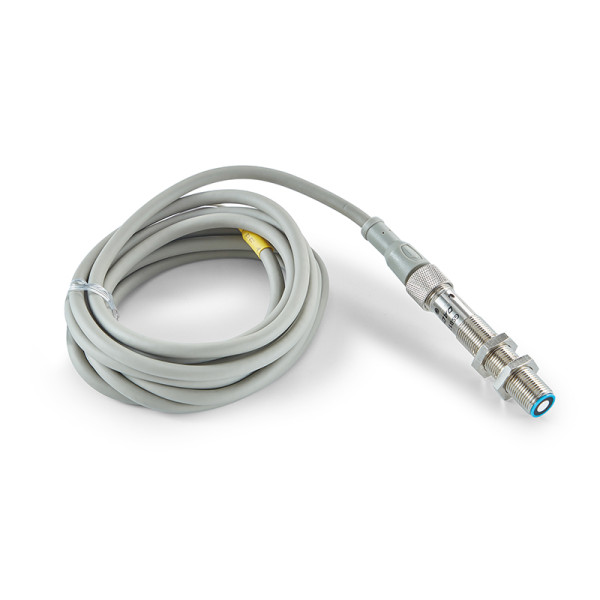

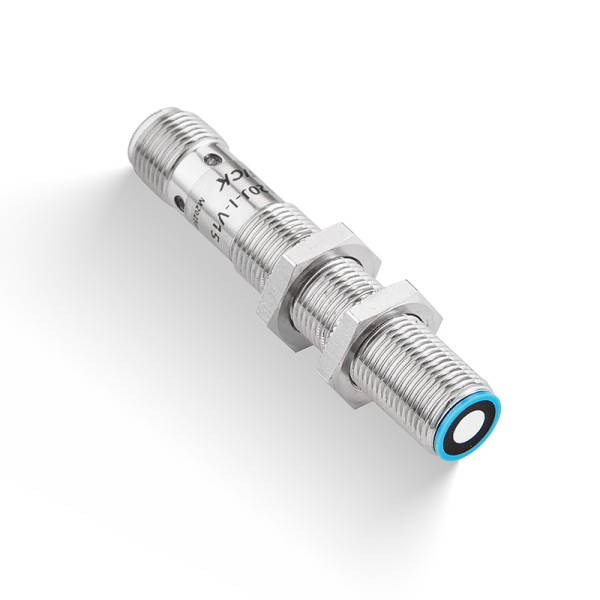

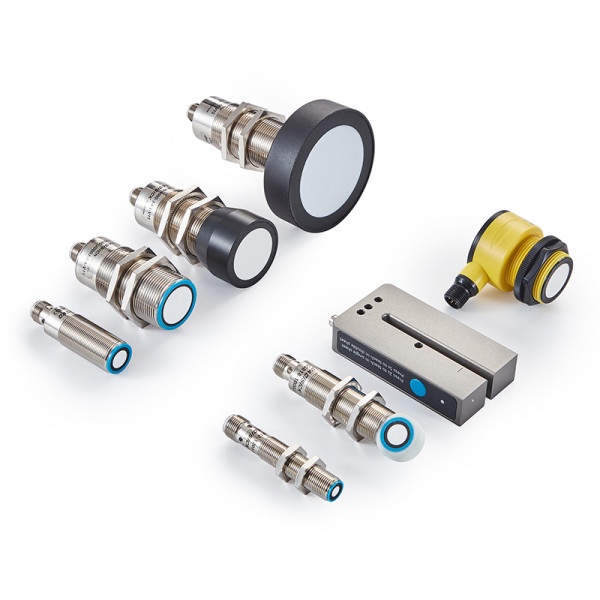

Ultrasonic Sensor CSB12 series— M12, 20–200mm Range, 0.1mm Resolution

Liên hệ

CSB12 series single switch output E2/E3/E4/E5
Model	CSB12-120-J55-E2-V1	CSB12-200-J55-E2-V1
	CSB12-120-J55-E3-V1	CSB12-200-J55-E3-V1
	CSB12-120-J55-E4-V1	CSB12-200-J55-E4-V1
	CSB12-120-J55-E5-V1	CSB12-200-J55-E5-V1

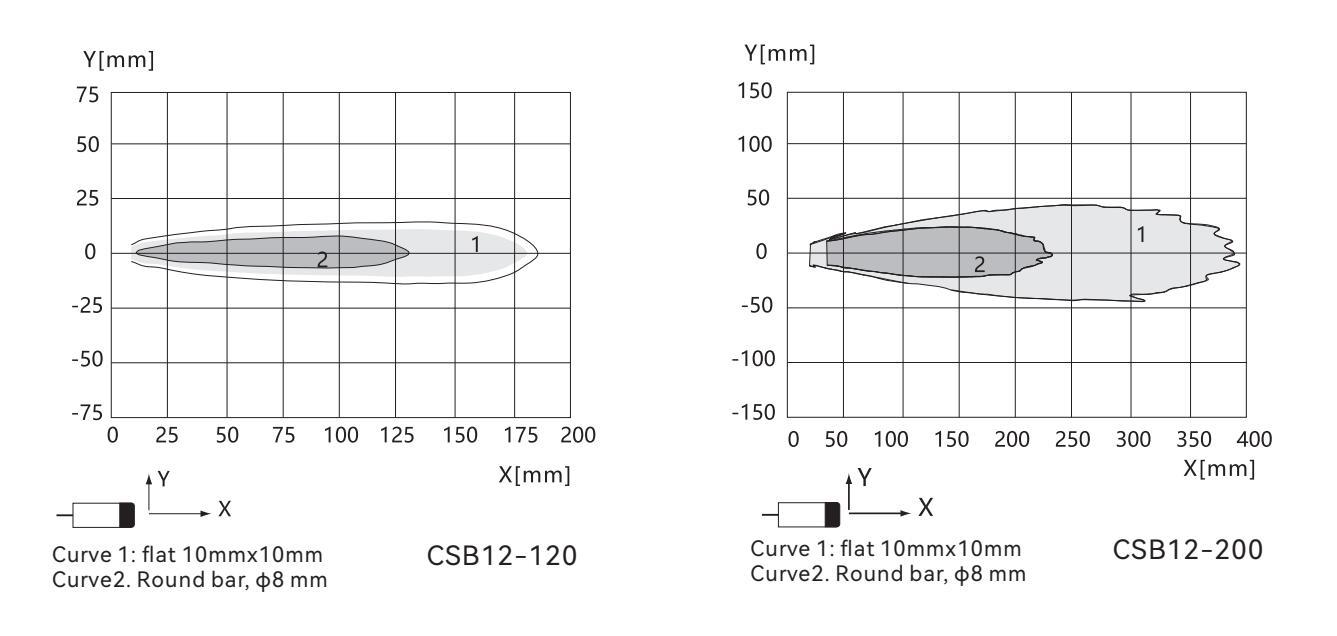

Detection range	20-120 mm	20-200 mm
Blind zone	0-20 mm	0-20 mm
Resolution	0.1 mm	0.1 mm
Repeatability	±0.15% of full-scale value	±0.15% of full-scale value
Absolute accuracy	±1 % ( built-in temperature drift compensation )	±1 % ( built-in temperature drift compensation )
Response time	18 ms	22 ms
Switching hysteresis	1 mm	1 mm
Switching frequency	55 Hz	45 Hz
Input type	With synchronous learning function	With synchronous learning function
Output type：E2/E4	1 NPN switch output, NO/NC	1 NPN switch output, NO/NC
Output type：E3/E5	1 PNP switch output, NO/NC	1 PNP switch output, NO/NC
Weight	16 g	20 g

CSB12 series analog quantity/RS485/IO-LINK output I/U/R4/IO
Model	CSB12-120-J65-I-V1	CSB12-200-J65-I-V1
	CSB12-120-J65-U-V1	CSB12-200-J55-U-V1
	CSB12-120-J55-R4-V1	CSB12-200-J55-R4-V1
	CSB12-120-J55-IO-V1	CSB12-200-J55-IO-V1
Detection range	20-120 mm	20-200 mm
Blind zone	0-20 mm	0-20 mm
Resolution	0.1 mm	0.1 mm
Repeatability	±0.15% of full-scale value	±0.15% of full-scale value
Absolute accuracy	±1 % ( built-in temperature drift compensation )	±1 % ( built-in temperature drift compensation )
Response time	18 ms	22 ms
Input type	With synchronous learning function	With synchronous learning function
Output type：I	1 analog current output 4-20 mA	1 analog current output 4-20 mA
Output type：U	1 analog voltage output 0-10 V	1 analog voltage output 0-10 V
Output type：R4	1 RS485 output, Modbus-rtu	1 RS485 output, Modbus-rtu
Output type：IO	1 push pull, IO-link support output	1 push pull, IO-link support output
Weight	16 g	20 g

Electrical data
Power-up Timer	<500 ms
Operating voltage	10-30 V DC, reverse polarity protection
LED red light	No target is always bright , and no target flashes when studying.
LED green Iight	Detected that the target is always bright , and the target flashes when studying.
Overpower protection	200 mA , red light and green light flashing at the same time.
Load impedance	I / 0-300 Ohm , U/ > 1k Ohm
No-load current	≤30 mA

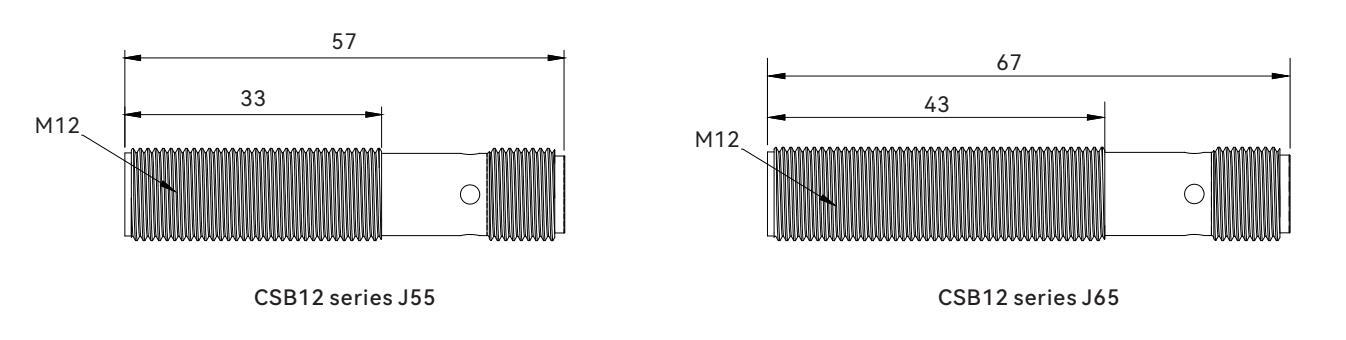

Structure	Cylindrical
Material	Copper nickel plating , plastic fittings , glass filled epoxy resin.

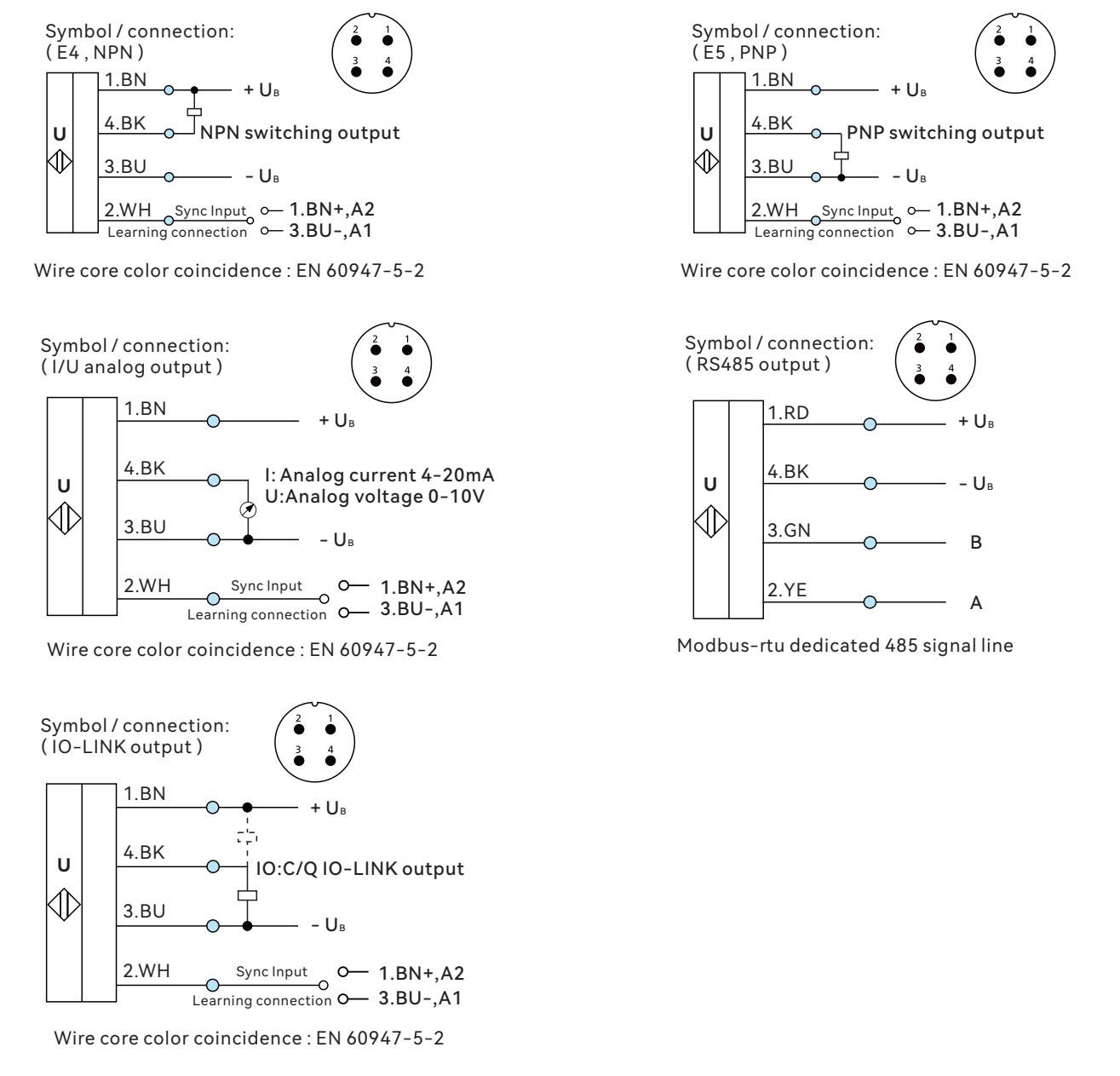

Connection type	4-pin M12 connector
Protection Class	IP 67
