Categories	CSB12 Series
Brand	DADISICK
Model	CSB12 Series \| CSB12-120-J55-E3-V1
Size:	Cylindrical M12mm
Detection range:	20-120mm
Material:	Copper nickel plating
Connection type:	4-pin M12 connector
Output method:	1 PNP switch output, NO/NC
Security level:	IP67
Ambient temperature:	-25°C~+70°C (248~343K)

SKU: CSB12-120-J55-E3-V1 Danh mục: Cảm biến siêu âm (Ultrasonic sensors) Thẻ: CSB12 Series

Mô tả

CSB12 series single switch output E2/E3/E4/E5
Model	CSB12-120-J55-E2-V1	CSB12-200-J55-E2-V1
	CSB12-120-J55-E3-V1	CSB12-200-J55-E3-V1
	CSB12-120-J55-E4-V1	CSB12-200-J55-E4-V1
	CSB12-120-J55-E5-V1	CSB12-200-J55-E5-V1

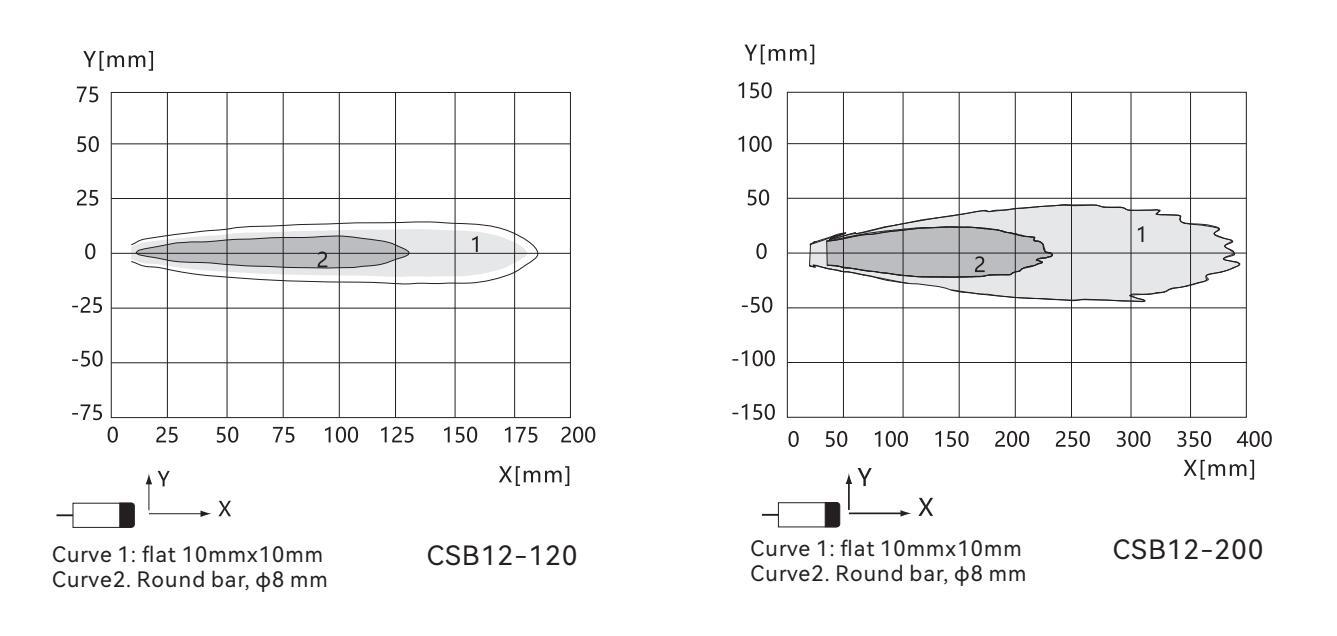

Detection range	20-120 mm	20-200 mm
Blind zone	0-20 mm	0-20 mm
Resolution	0.1 mm	0.1 mm
Repeatability	±0.15% of full-scale value	±0.15% of full-scale value
Absolute accuracy	±1 % ( built-in temperature drift compensation )	±1 % ( built-in temperature drift compensation )
Response time	18 ms	22 ms
Switching hysteresis	1 mm	1 mm
Switching frequency	55 Hz	45 Hz
Input type	With synchronous learning function	With synchronous learning function
Output type：E2/E4	1 NPN switch output, NO/NC	1 NPN switch output, NO/NC
Output type：E3/E5	1 PNP switch output, NO/NC	1 PNP switch output, NO/NC
Weight	16 g	20 g

CSB12 series analog quantity/RS485/IO-LINK output I/U/R4/IO
Model	CSB12-120-J65-I-V1	CSB12-200-J65-I-V1
	CSB12-120-J65-U-V1	CSB12-200-J55-U-V1
	CSB12-120-J55-R4-V1	CSB12-200-J55-R4-V1
	CSB12-120-J55-IO-V1	CSB12-200-J55-IO-V1
Detection range	20-120 mm	20-200 mm
Blind zone	0-20 mm	0-20 mm
Resolution	0.1 mm	0.1 mm
Repeatability	±0.15% of full-scale value	±0.15% of full-scale value
Absolute accuracy	±1 % ( built-in temperature drift compensation )	±1 % ( built-in temperature drift compensation )
Response time	18 ms	22 ms
Input type	With synchronous learning function	With synchronous learning function
Output type：I	1 analog current output 4-20 mA	1 analog current output 4-20 mA
Output type：U	1 analog voltage output 0-10 V	1 analog voltage output 0-10 V
Output type：R4	1 RS485 output, Modbus-rtu	1 RS485 output, Modbus-rtu
Output type：IO	1 push pull, IO-link support output	1 push pull, IO-link support output
Weight	16 g	20 g

Electrical data
Power-up Timer	<500 ms
Operating voltage	10-30 V DC, reverse polarity protection
LED red light	No target is always bright, and no target flashes when studying.
LED green Iight	Detected that the target is always bright, and the target flashes when studying.
Overpower protection	200mA, red light and green light flashing at the same time.
Load impedance	I / 0-300 Ohm, U/ > 1k Ohm
No-load current	≤30 mA

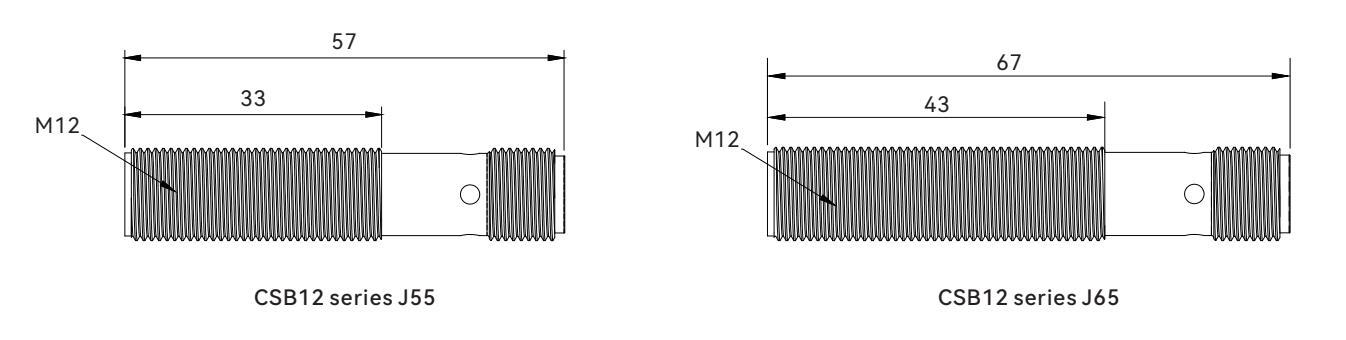

Structure	Cylindrical
Material	Copper nickel plating, plastic fittings, glass filled epoxy resin.

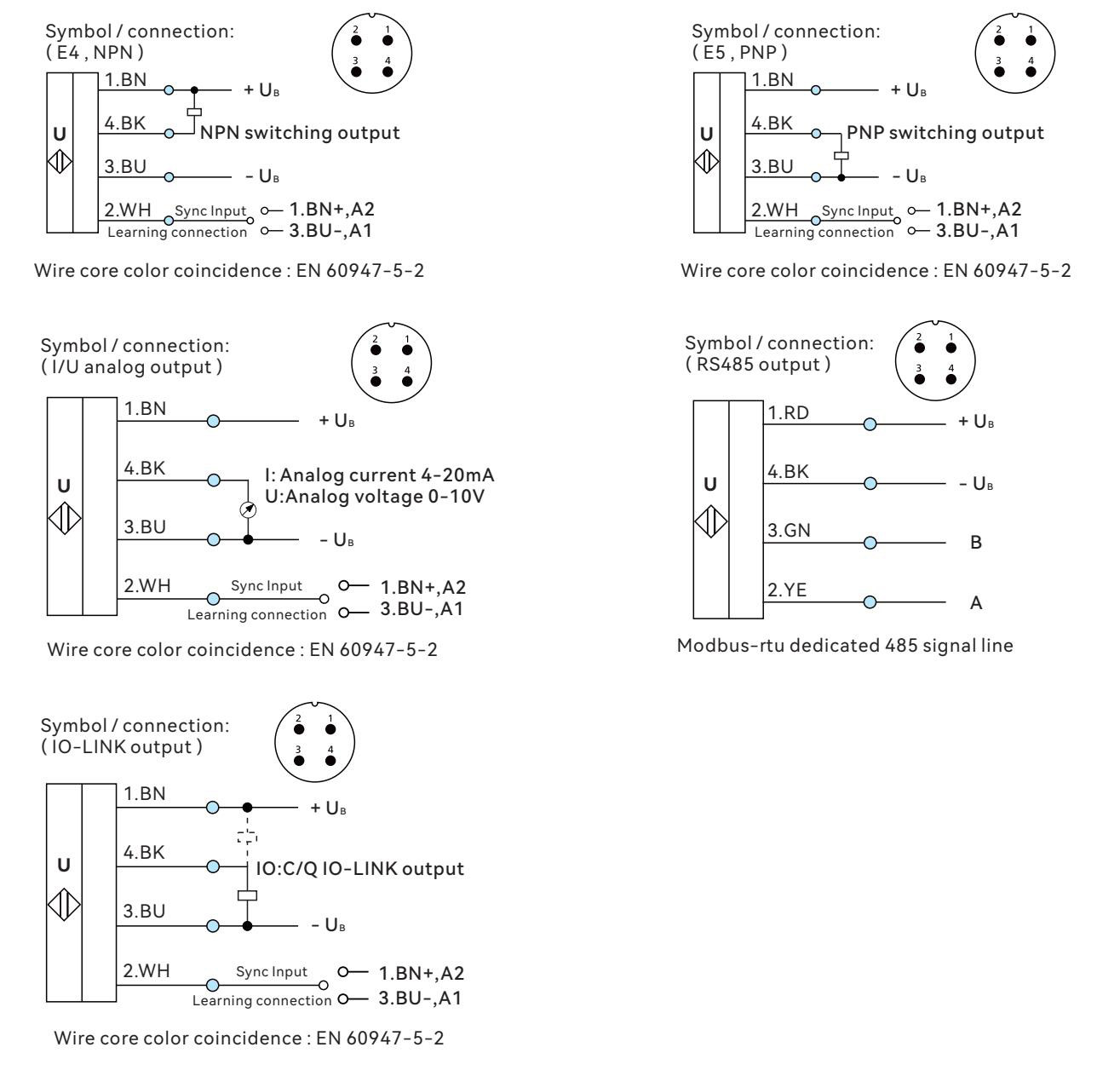

Connection type	4-pin M12 connector
Protection Class	IP67
